KLM-KNT-4/KNT-5
Super-ecs
SUP-KNT-4/KNT-5
| PRODUCT ADVANTAGES |
IPX6 waterproof.
Can carry 12 tube controller.
All-aluminum alloy one-piece bottom plate, enhanced heat dissipation effect.
6Pin high current discharge plug, single pin rated 30A.
| BATTERY BOX PARAMETERS |
| Model | KNT-4 |
| Maximum cells | 40 (21700)/65 (18650） |
| Max capacity | 36V20Ah/48V17.5Ah |
| Discharge port | 6Pin |
| Charging port | DC2.1/3P/5P |
| USB or Type-C port | Without |

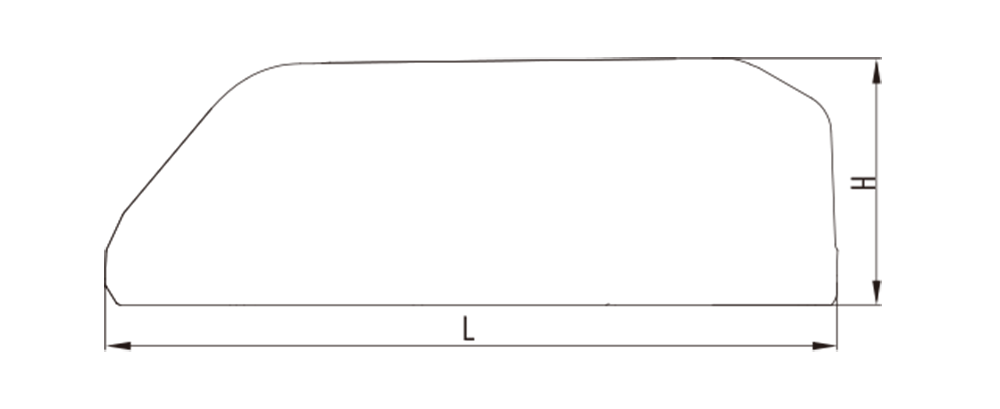

| L (mm) | 370.5 |
| Model | KNT-5 |

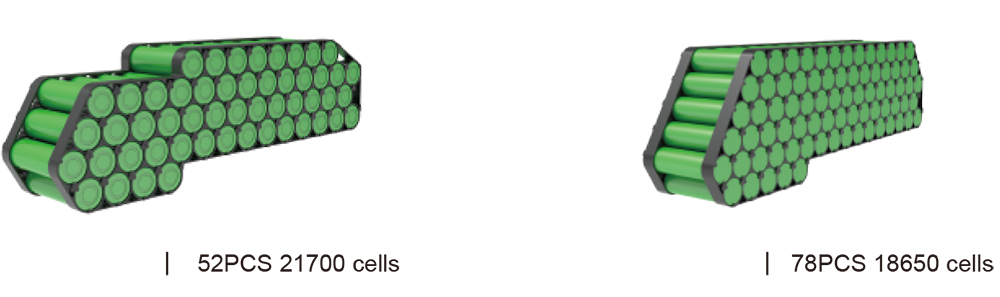

| Maximum cells | 52 (21700)/78 (18650） |
| Max capacity | 48V20Ah/48V21Ah |
| Discharge port | 6Pin |
| Charging port | DC2.1/3P/5P |
| USB or Type-C port | Without |
| L (mm) | 370.5 |

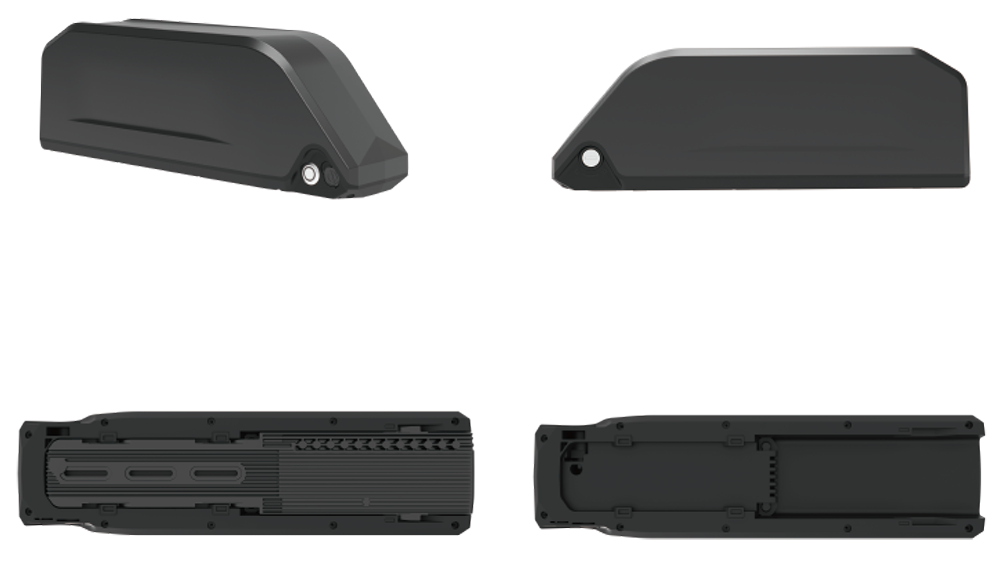

| PRODUCT PICTURE |
| PRODUCT ADVANTAGES |
IPX6 waterproof.
Can carry 12 tube controller.
All-aluminum alloy one-piece bottom plate, enhanced heat dissipation effect.
6Pin high current discharge plug, single pin rated 30A.
| BATTERY BOX PARAMETERS |
| Model | KNT-4 |
| Maximum cells | 40 (21700)/65 (18650） |
| Max capacity | 36V20Ah/48V17.5Ah |
| Discharge port | 6Pin |
| Charging port | DC2.1/3P/5P |
| USB or Type-C port | Without |
| L (mm) | 370.5 |
| Model | KNT-5 |
| Maximum cells | 52 (21700)/78 (18650） |
| Max capacity | 48V20Ah/48V21Ah |
| Discharge port | 6Pin |
| Charging port | DC2.1/3P/5P |
| USB or Type-C port | Without |
| L (mm) | 370.5 |
| PRODUCT PICTURE |
