Electric bike RPAS 12 Magnet Removable PAS sensor power assist sensor

Color:
Samples:
price:
Availability:
Quantity:
  • DH12

  • Super-ecs

  • SUP-DH12

Description

PAS-DH12 is a pedal assist sensor for bike, it was combined with 3 parts , a disc with 12 magnet , a sensor , and a Holding ring, do not need any tools to fix this sensor on bike ,so installation will be more easily , it was widely used for ebike convertion kits .

Automatic moving direction detect , so this sensor can check the moving direction while pedaling , sending out signal when forward and stop sending when backwards.

There have a indicator on sensor , it can help user to check the sensor is working or not .

Specification
Model PAS-DH12
Power 5V/2mA
Signal

Forward-12Pules Per Circle Reverse -None

Indicator Red Light
Material PC
Wegiht 7.8g
Axel Size 15-15.8mm
Appearance and size

尺寸

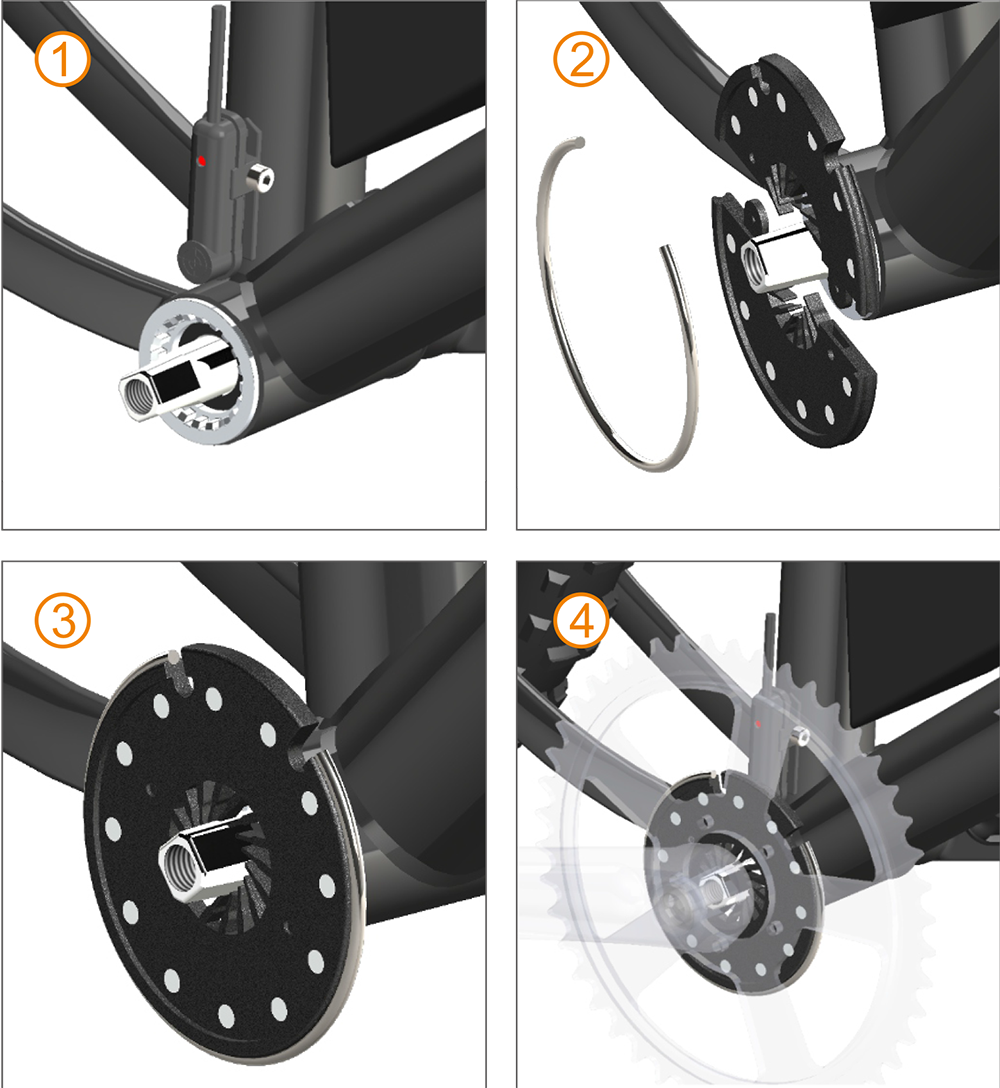

Installation Instructions

安装
