Higo Customized waterproof connectors Female male electrical harness Electrical complete wiring integrated Harness for ebike equipment

Color:
Samples:
price:
Availability:
Quantity:
  • F.T-1T2W

  • Super-ecs

  • SUP-F.T-1T2W

Depend on quantity
  • Customizable Solutions

  • Waterproof integrated Harness

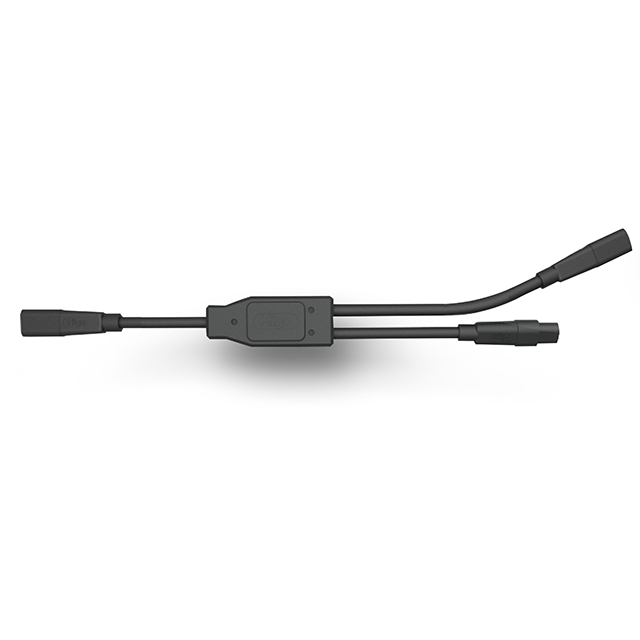

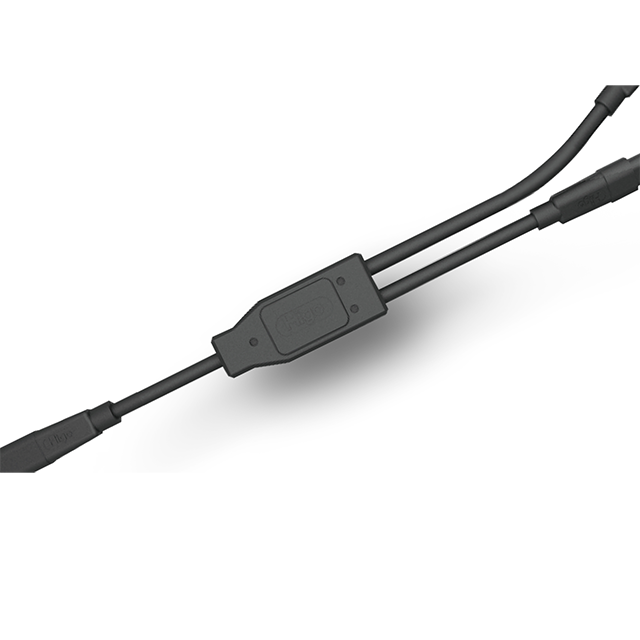

主图1主图2

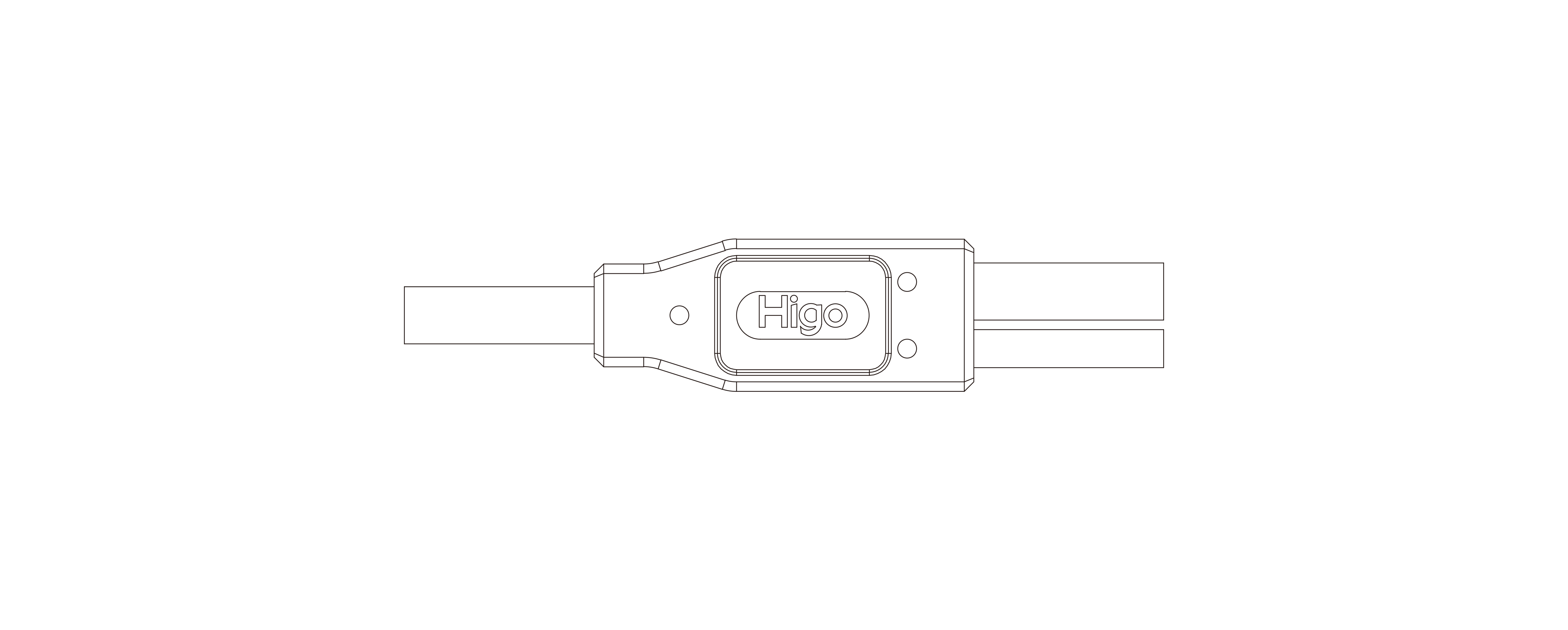

20220421_131733_002

Electrical properties
scope of application The electric bike, Scooter,motorcycle, industry;The LED industry and so on.
Types waterproof plug/waterproof connectors/Multi-split  waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface type AC/DC
Use wire gauge 0.14mm²/0.20mm²
Feature waterproof
Joint material PVC/PBT/PA66 / PC + ABS
Contact material Gold-plated copper alloy in line with military standards
Rated voltage 48V AC/DC
Withstand voltage 500V(special require should be mentioned in advance)

Working temperature -25℃~+80℃
Protection grade IP67
Insulation resistance ≥20MΩ
Contact resistance ≤10mΩ
Certification can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire
Product size 16*40mm
