SS01.SS02.SS03
Super-ecs
SUP- SS01.SS02.SS03
| Description |
This In-Line Shift sensor is fixed on derailleur cable ,a signal will be generated by this sensor while gear-changing process , bike control system can take action after getting this signal.
This sensor is widely used on middle-drive system, smaller size ,easily to fix, high sensitivity.
| Specification |
| Mode | SS-01/SS-02/SS-03 |
| Power | 5V/1mA |
| Signal | Pulse (See Reference) |
| Protection | Short Circuit & Polarity Reversed Protection |
| Housing Material | Intensive ABS |
| Size | 47 x 18 x 12mm |
| Weight | 6.4g |

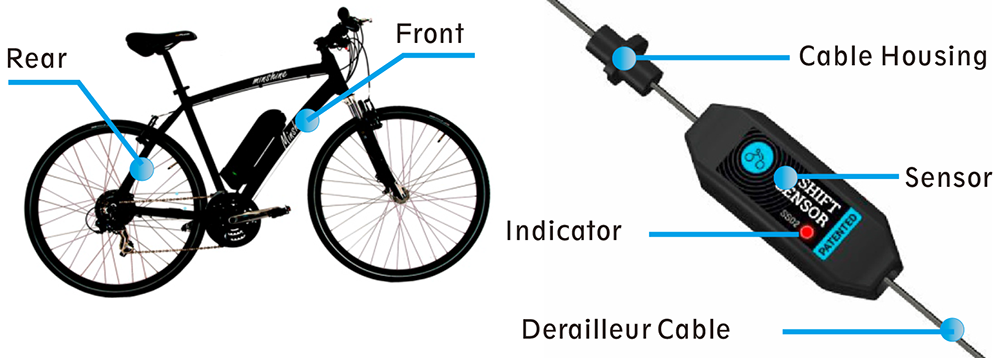

| Install Guide |
| Interface |
Connector : SM3 or other
Red : VCC
Black : GND
White : Signal
Indicator:
Standby : Green or Blue Flash
Action : Red light

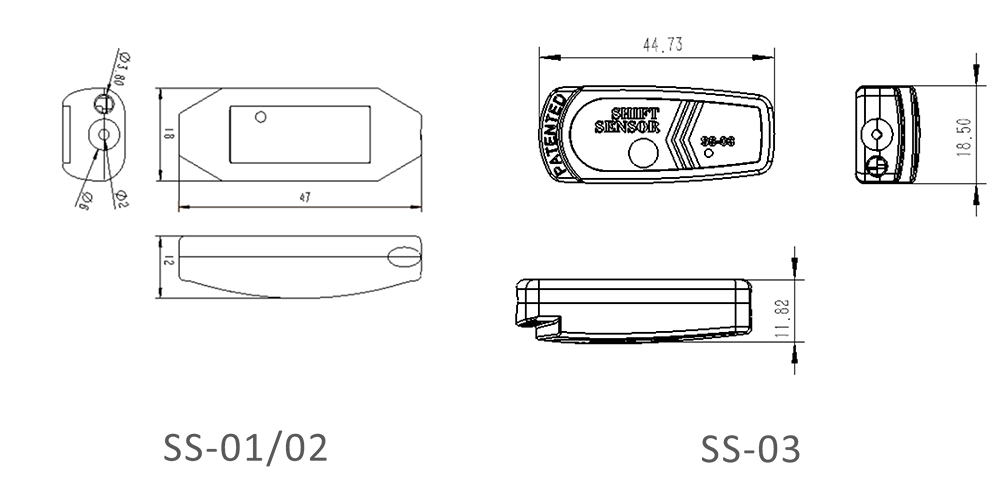

| Appearance and size |
