Inner Lithium Battery box down-fetch/uptake ntegrated power display button 40PCS 21700 cells/52PCS 21700 cells for ebike

model:
Samples:
price:
Availability:
Quantity:
  • KLM-GHT-4

  • Super-ecs

  • SUP-GHT-4

PRODUCT ADVANTAGES

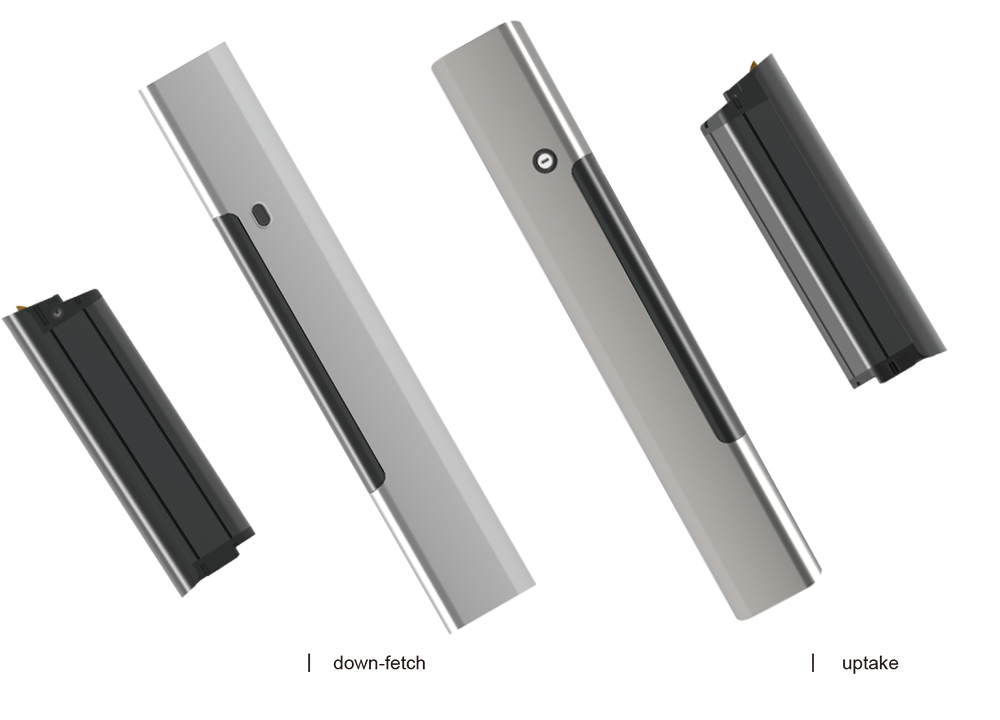

  • You can take the battery box up or down.

  • ntegrated power display button.

  • The male end of the discharge plug adopts soft contact design.


BATTERY BOX  PARAMETERS

Model GHT-4

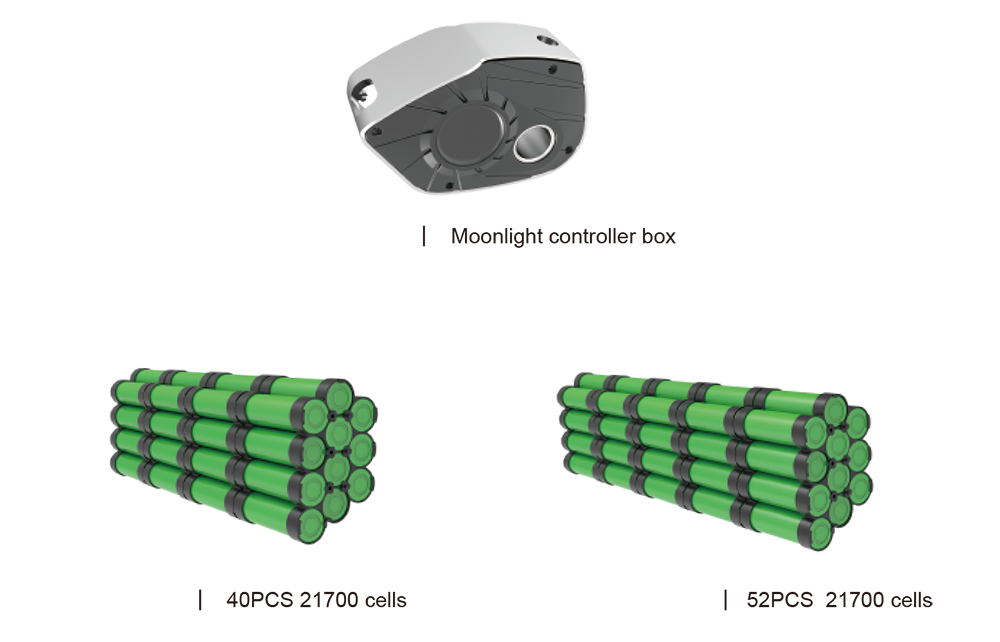

Maximum cells 40 (21700)/52 (21700)
Max capacity 36V20Ah/48V20Ah
Discharge port 6Pin
Charging port DC2.1/3P/5P
USB or Type-C port Without
L (mm) 380.5 / 452.5

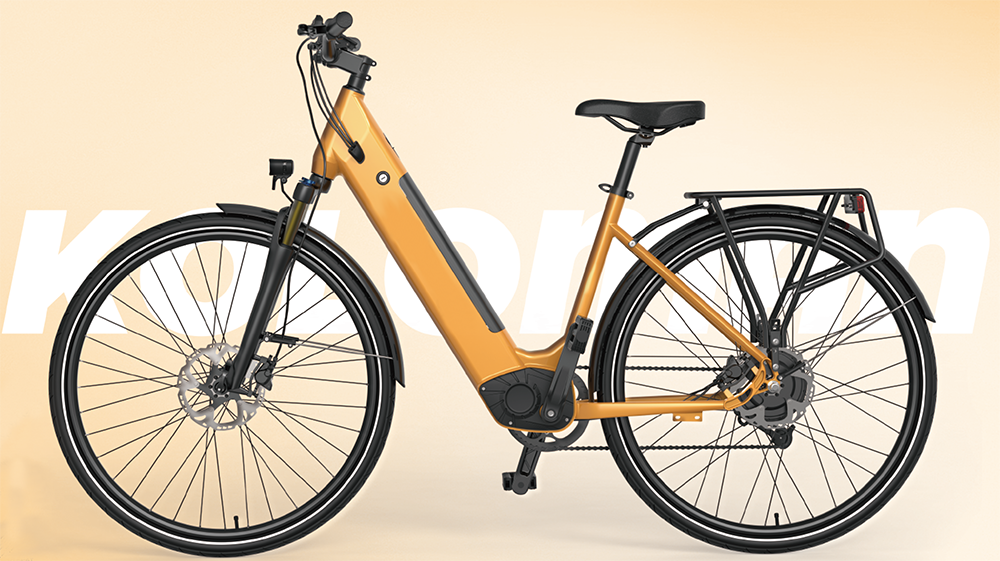

PRODUCT PICTURE

详情页1

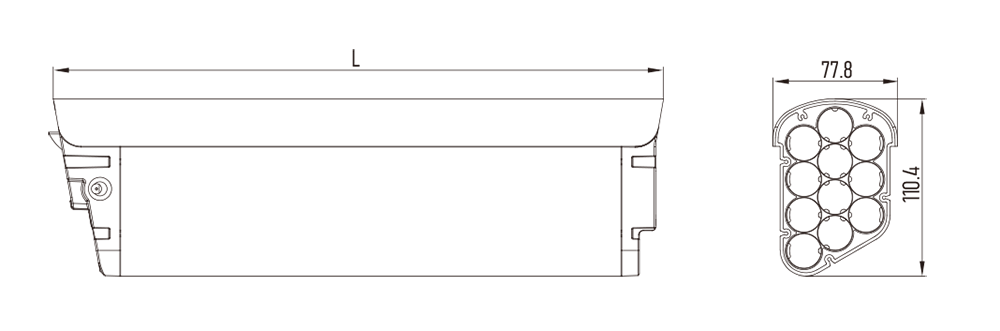

PRODUCT SIZE

详情页2详情页3详情页4
