PAS for ebike

Color:
Samples:
price:
Availability:
Quantity:
  • B12 L/R

  • Super-ecs

  • SUP-B12 L/R

Description

This is an Integrated sensor, it can be fixed at left or right side of bottom brackets .

Automatic moving direction detect , so this sensor can check the moving direction while pedaling , sending out signal when forward and stop sending when backwards.

Specification
Model PAS-B12L/R
Power 5V/2mA
Signal

Forward-12Pules Per Circle Reverse -None

Indicator Red Light
Material PC
Wegiht 7.8g
Axel Size 15-15.8mm

主图2

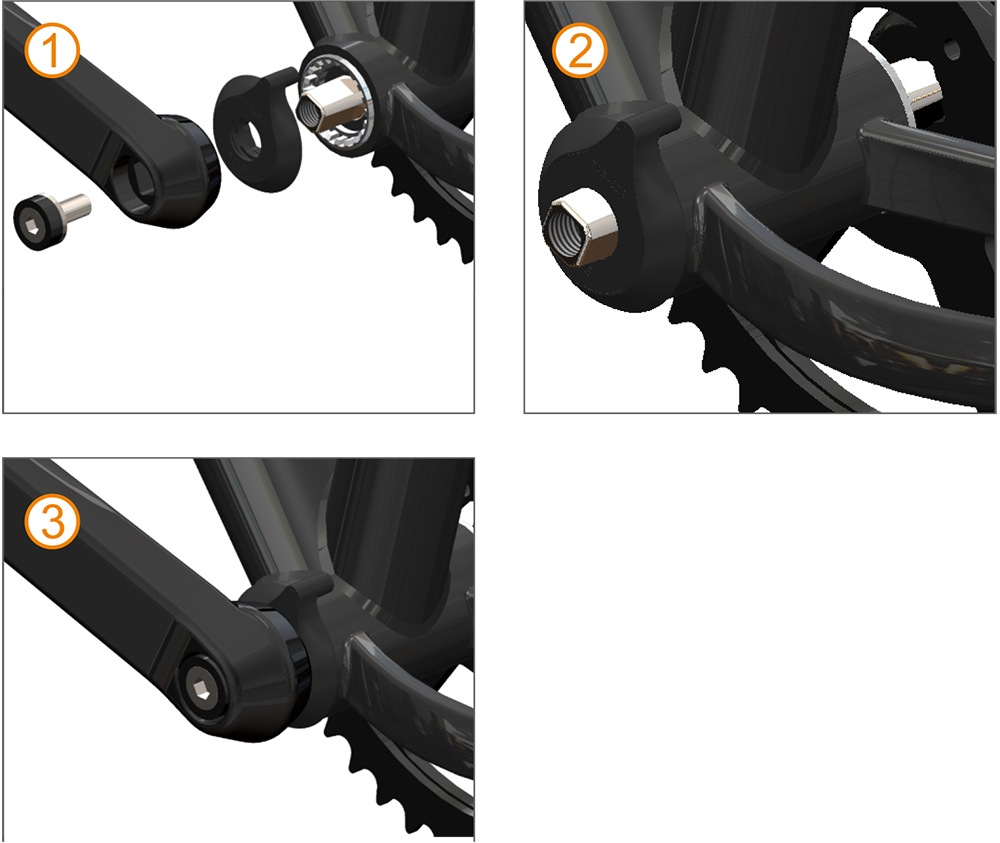

Install Guide

安装图
