Pedal Assist Sensor PAS Integrated sensor for ebike

Color:
Samples:
price:
Availability:
Quantity:
  • 12 L/R

  • Super-ecs

  • SUP-12 L/R

Description

This is an Integrated sensor, it can be fixed at left or right side of bottom brackets .

The main features of this sensor is very thinner.

Automatic moving direction detect , so this sensor can check the moving direction while pedaling,sending out signal when forward and stop sending when backwards.

Specification
Model PAS12L /R
Power 5V/2mA
Signal Forward-12Pules Per Circle,Reverse -None
Material PC
Wegiht 7.8g
Axel Size 15-15.8mm

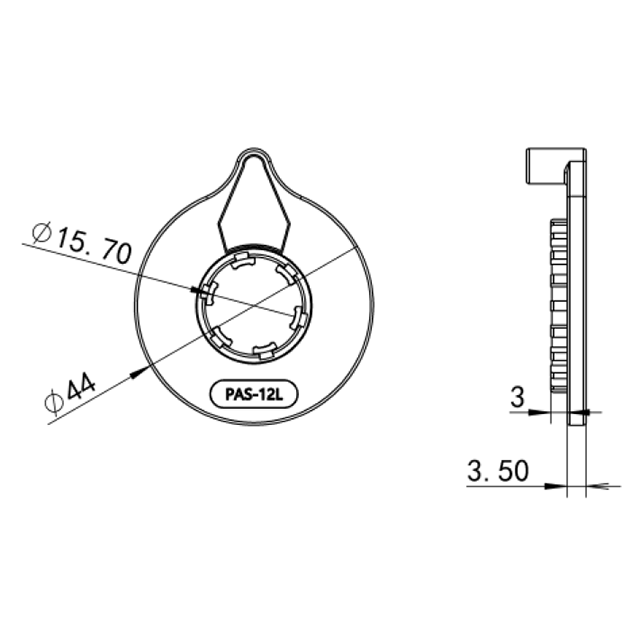

主图2

Interface

Connector : SM3 or Others

Red : VCC

Black : GND

White : Signal

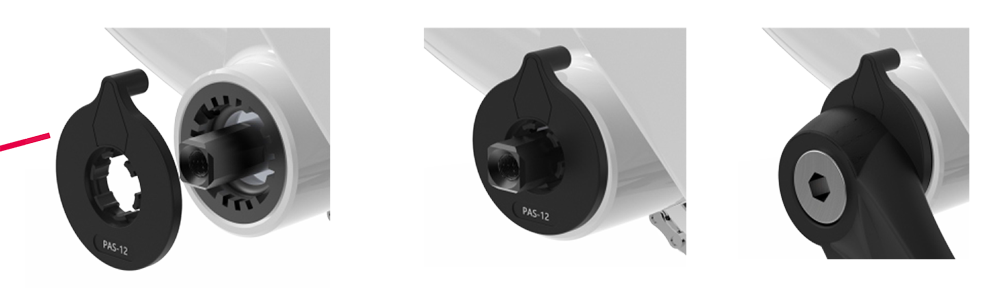

Install Guide

安装图
