The newest high precision PAS Integrated sensor for ebike

Color:
Samples:
price:
Availability:
Quantity:
  • 24L/R

  • Super-ecs

  • SUP-24L/R

Description

This is a newest high precision PAS sensor , it's an Integrated sensor, it can be fixed at left or right

side of bottom brackets .

Automatic moving direction detect , so this sensor can check the moving direction while pedaling , sending out signal when forward and stop sending when backwards.

Specification
Model PAS24L /R
Power 5V/2mA
Signal

Forward-24Pules Per Circle Reverse -None

Indicator Red Light
Material PC
Wegiht 7.8g
Axel Size 15-15.8mm

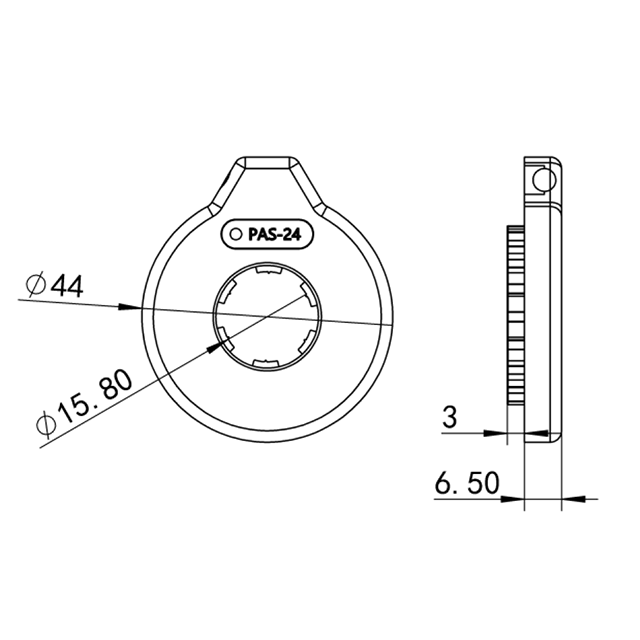

主图2

Interface

Connector : SM3 or Others

Red : VCC

Black : GND

White : Signal

Indicator:

Standby : Red Light

Forward : Red Blink

Reverse : Light off

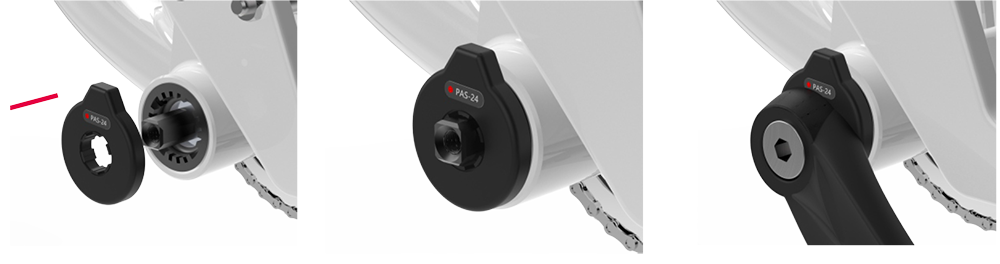

Install Guide

安装
