MC02C/B
Super-ecs
SUP-MC02C/B
| Description |
This is a high-performance USB charger which built-in battwery of ebike , Automatically identify different mobile charger interface include Apple , quick charging with 1-1.5a continue current.Wide input voltage ,multiple protection measures is valid include Reverse connection protection ,Over-Current protection ,Short-Circuit protection .
| Specification |
| Model | MC02C/B | Efficiency | ＞92% |
| Input | 7-60VDC | Working Temp | -20℃+60℃ |
| Output | 5VDC±0.25 | Over heating | 150℃ |
| Max Current | 1000mA | Size | 44 * 21 *10mm |
| Resistance | < 0.2Ω |
| Install Guide |

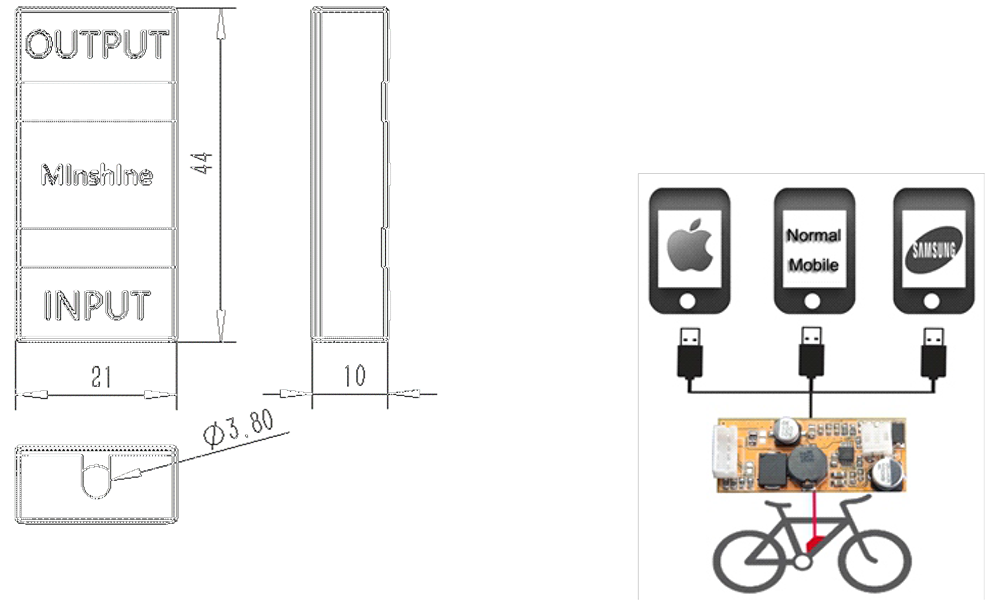

| Structure dimensions |
| Description |
This is a high-performance USB charger which built-in battwery of ebike , Automatically identify different mobile charger interface include Apple , quick charging with 1-1.5a continue current.Wide input voltage ,multiple protection measures is valid include Reverse connection protection ,Over-Current protection ,Short-Circuit protection .
| Specification |
| Model | MC02C/B | Efficiency | ＞92% |
| Input | 7-60VDC | Working Temp | -20℃+60℃ |
| Output | 5VDC±0.25 | Over heating | 150℃ |
| Max Current | 1000mA | Size | 44 * 21 *10mm |
| Resistance | < 0.2Ω |
| Install Guide |
| Structure dimensions |
