speed sensor PAS for ebike

Color:
Samples:
price:
Availability:
Quantity:
  • SPS-1

  • Super-ecs

  • SUP-SPS-1

Description

This is a speed sensor for bike ,well design , ,smaller size ,easily install; electric puless come out from

sensor and indicator on sensor will blink while wheel rotating ,bike control system measure the bike

speed accruately by this signal .

Specification
Model SPS-1
Power 5V
Signal Pules
Housing material Intensive ABS
Sensor Size 38.5x14x15.5mm
Magnetic body Copper
Net Wegiht 12.8g

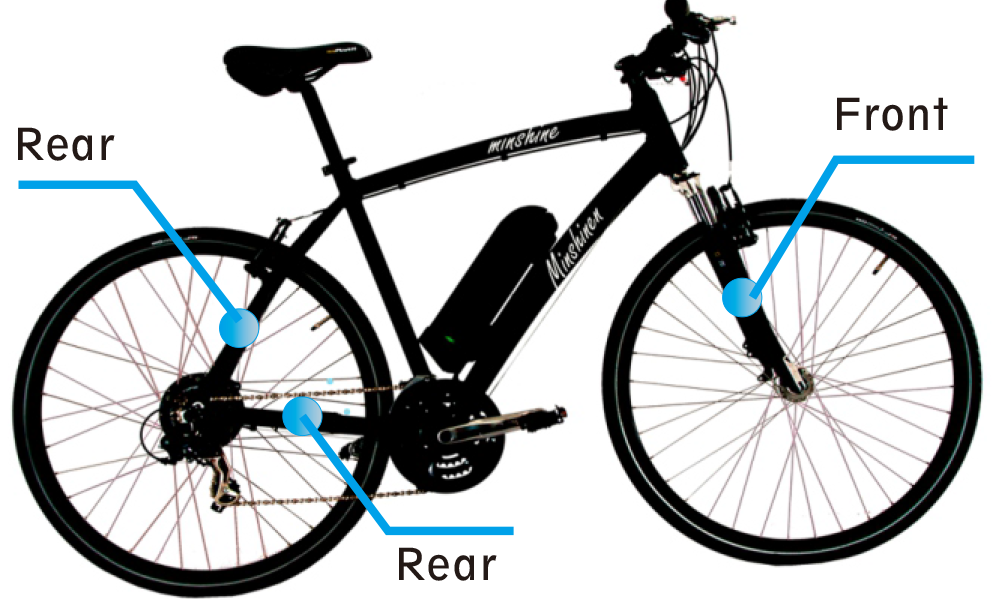

Install Guide

安装

Interface

Connector : SM3 orOther

Red : VCC

Black : GND

White : Signal

Standby: Red Light

Forward: Long Red Blink

Reverse: Short Red Blink

主图2

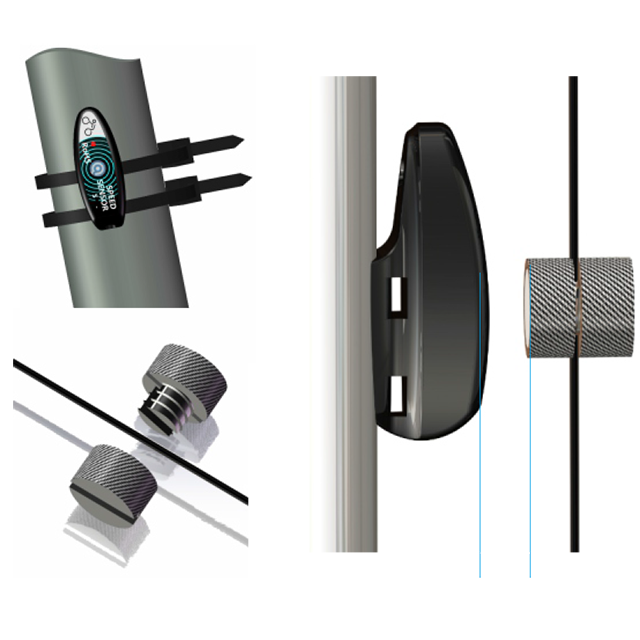

Note: The max gap between sensor and Magnet is 10mm
