EW02/03
Super-ecs
SUP-EW02/03
| Basic Parameters |
| Position | Rear | Operating temperature (℃ ) | -20-45 |
| Construction | Gear | Surface color | Black / Silver |
| Rated Voltage(V) | 36 /48 | Dropout(mm) | 135 |
| Rated Power (W) | 250 / 350 | Drive and Freewheel | single speed |
| Weight (KG) | 3.5-4.8 | Brake type | V / Disc Brake |
| Reduction Ratio | 1 : 4.4 | Efficiency (%) | ≥ 80 |
| Max torque(N.m) | 38 | Cable position | Shaft center Right / Left (optional) |
| Wheel size (Inch) | 12 / 14/ 16 | Noise grade (db) | ≤ 45 |
| Rated speed(km/h) | 25-32 | IP grade | 54 |
| Magnet Poles(2P) | 10 | Salt spray test standard(h) | 24/96 |
| Product advantages |
| 1 | Long service life (bearing life), long maintenance cycle; Simple and convenient maintenance; |
| 2 | There is no mechanical commutator inside to prevent dust from entering the motor, with high reliability; |
| 3 | The overload capacity is strong, meeting the needs of the vehicle's protruding locked rotor, and the motor rotor has a high permanent magnetic field; |
| 4 | Excellent starting performance, energy consumption without hysteresis damping, and high torque climbing capability; |
| 5 | High working efficiency, low power consumption and long driving distance; |
| 6 | Superior waterproof performance; |
| 7 | There are many driving modes, which can meet most loading requirements of the market; |
| 8 | High performance price ratio of motor; |
| 9 | Low noise and reliable operation |

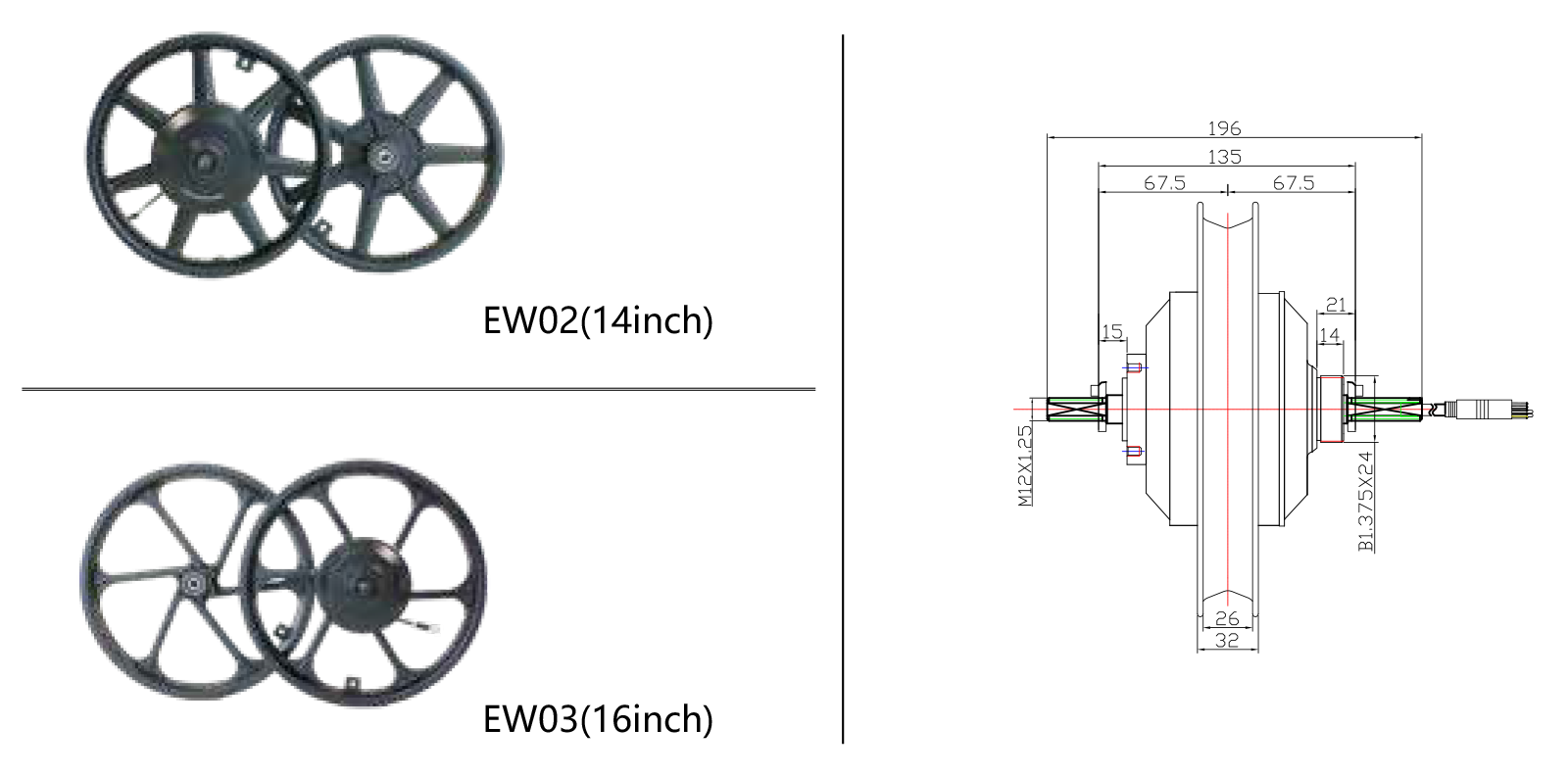

| Product dimension drawing |
| Basic Parameters |
| Position | Rear | Operating temperature (℃ ) | -20-45 |
| Construction | Gear | Surface color | Black / Silver |
| Rated Voltage(V) | 36 /48 | Dropout(mm) | 135 |
| Rated Power (W) | 250 / 350 | Drive and Freewheel | single speed |
| Weight (KG) | 3.5-4.8 | Brake type | V / Disc Brake |
| Reduction Ratio | 1 : 4.4 | Efficiency (%) | ≥ 80 |
| Max torque(N.m) | 38 | Cable position | Shaft center Right / Left (optional) |
| Wheel size (Inch) | 12 / 14/ 16 | Noise grade (db) | ≤ 45 |
| Rated speed(km/h) | 25-32 | IP grade | 54 |
| Magnet Poles(2P) | 10 | Salt spray test standard(h) | 24/96 |
| Product advantages |
| 1 | Long service life (bearing life), long maintenance cycle; Simple and convenient maintenance; |
| 2 | There is no mechanical commutator inside to prevent dust from entering the motor, with high reliability; |
| 3 | The overload capacity is strong, meeting the needs of the vehicle's protruding locked rotor, and the motor rotor has a high permanent magnetic field; |
| 4 | Excellent starting performance, energy consumption without hysteresis damping, and high torque climbing capability; |
| 5 | High working efficiency, low power consumption and long driving distance; |
| 6 | Superior waterproof performance; |
| 7 | There are many driving modes, which can meet most loading requirements of the market; |
| 8 | High performance price ratio of motor; |
| 9 | Low noise and reliable operation |
| Product dimension drawing |
