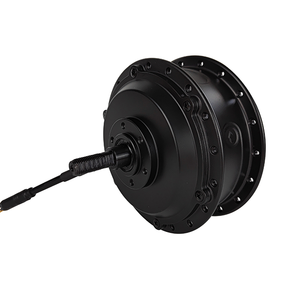

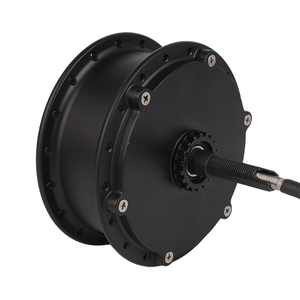

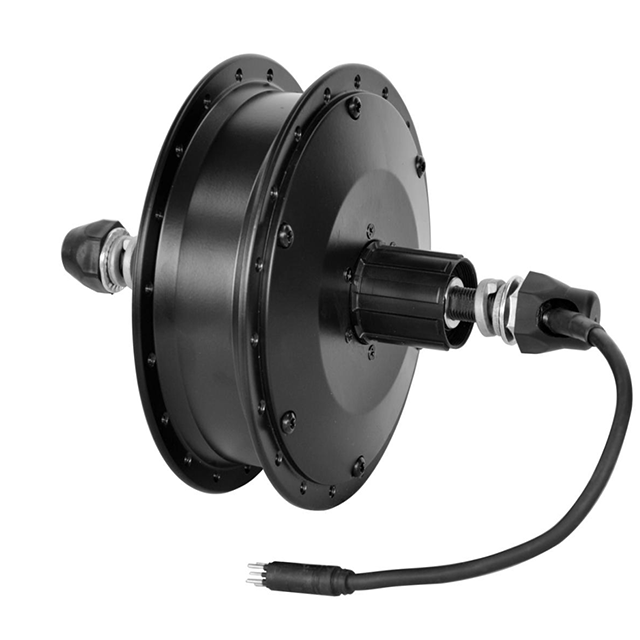

350W/500W electric bicycle hub motor with integrated PAS sensor

Color:
Samples:
price:
Availability:
Quantity:
  • CK-RW05

  • Super-ecs

  • SUP-RW05

Basic Parameters
Voltage(V) 36-48 Spoke size 12G/13G
Rated power(W) 350-500 Built in speed sensor Optional
Maximum speed(rpm) 380 Hall Optional
Rated efficiency(%) >80 Free wheel Kaki
Number of poles 20 Maximum outside diameter Φ158.8
Reduction ratio 1:5 Noise(dB) <55
Weight(Kg) 3.6 Salt spray test (h) 96
Fork size(mm)
140 Waterproof grade IP54
Entry cable Shaft end outgoing line Authentication CE、ROHS
Product advantages
1 Long service life (bearing life), long maintenance cycle; Simple and convenient maintenance;
2 There is no mechanical commutator inside to prevent dust from entering the motor, with high reliability;
3 The overload capacity is strong, meeting the needs of the vehicle's protruding locked rotor, and the motor rotor has a high permanent magnetic field;
4 Excellent starting performance, energy consumption without hysteresis damping, and high torque climbing capability;
5 High working efficiency, low power consumption and long driving distance;
6 Superior waterproof performance;
7 There are many driving modes, which can meet most loading requirements of the market;
8 High performance price ratio of motor;
9 Low noise and reliable operation

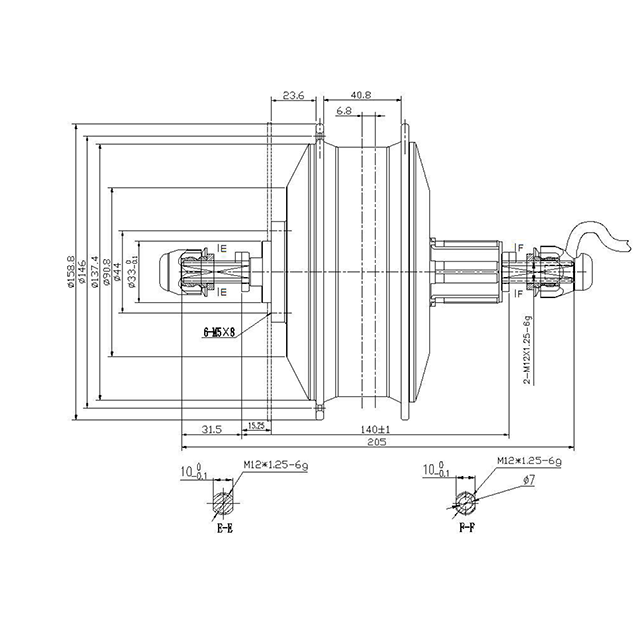

Product dimension drawing

主图2
