SSE-027
Super-ecs
SUP-SSE-027
Informations |
Battery can be equipped with Samsung cell,LG cell,Panasonic cell or High power Chinese 18650 cell;
Battery can be customized as your requirements;
OEM/ODM orders are welcomed;
Battery Technical Data |
Max cell space | 18650 40 pcs |
Configration | 10S4P |
Material | PC+ABS |
Charging port | DC 2.1 |
Discharging port | Self-made 4pin |
Lock | Mechanical lock |
Capacity indicator | 4 lever LED capacity indicator |
Working temperature | 0~45℃(charge);-20~60℃(discharge) |
Warranty | 1 Year |
Weight | Subject to the real object |
Lithium Battery Features |
Safety: safest Li-Ion battery, CE ROHS approved, built in PCM/PCB, none fire or explosive;
Clean and Green energy, no toxic material contained;
Long life cycle, 80% capacity remain after 500 times deep cycle;
No memory effect,highly efficient charge anytime, no reduction of capacity;
Small size, light weight;
Good performance at high temperature and high temperature resistance;
Low self-discharge rate: < 3% monthly;
Lithium cylindrical rechargeable batteries with PCB protection;
Internal PCB protection (patent pending design) protect battery from over charge,over discharge,over current and short circuit;
Battery tested before delivery to ensure capacity, quality and lifetime;
Pollution-Free/Long Cycle Life/Good Consistency;
Large manufacturers, short delivery time, price advantage;

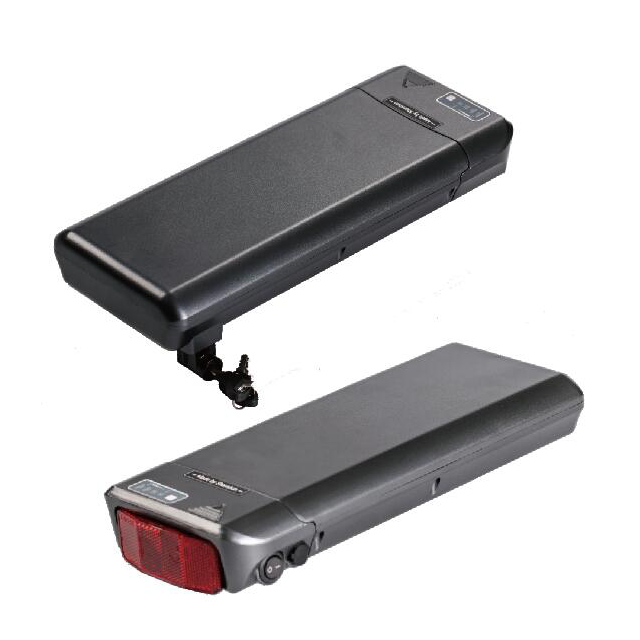

Product Photos |
Vibration Test | After standard charging, put battery on the vibration table. 30min experiment from X, Y, Z axis. Scan rate: 1oct/min; Frequency10-30Hz, Swing 0.38mm; Frequency 30-55Hz, Swing 0.19mm. | no influence to batteries electrical performance and appearance. |
Informations |
Battery can be equipped with Samsung cell,LG cell,Panasonic cell or High power Chinese 18650 cell;
Battery can be customized as your requirements;
OEM/ODM orders are welcomed;
Battery Technical Data |
Max cell space | 18650 40 pcs |
Configration | 10S4P |
Material | PC+ABS |
Charging port | DC 2.1 |
Discharging port | Self-made 4pin |
Lock | Mechanical lock |
Capacity indicator | 4 lever LED capacity indicator |
Working temperature | 0~45℃(charge);-20~60℃(discharge) |
Warranty | 1 Year |
Weight | Subject to the real object |
Lithium Battery Features |
Safety: safest Li-Ion battery, CE ROHS approved, built in PCM/PCB, none fire or explosive;
Clean and Green energy, no toxic material contained;
Long life cycle, 80% capacity remain after 500 times deep cycle;
No memory effect,highly efficient charge anytime, no reduction of capacity;
Small size, light weight;
Good performance at high temperature and high temperature resistance;
Low self-discharge rate: < 3% monthly;
Lithium cylindrical rechargeable batteries with PCB protection;
Internal PCB protection (patent pending design) protect battery from over charge,over discharge,over current and short circuit;
Battery tested before delivery to ensure capacity, quality and lifetime;
Pollution-Free/Long Cycle Life/Good Consistency;
Large manufacturers, short delivery time, price advantage;
Product Photos |
Vibration Test | After standard charging, put battery on the vibration table. 30min experiment from X, Y, Z axis. Scan rate: 1oct/min; Frequency10-30Hz, Swing 0.38mm; Frequency 30-55Hz, Swing 0.19mm. | no influence to batteries electrical performance and appearance. |
