Ebike Battery 36V 10Ah 15Ah 18Ah 20Ah 18650 Lithium Ion Ebike Kit Case Electric Bike Battery Pack for Ebike

Color:
Samples:
price:
Availability:
Quantity:
  • SSE-006

  • Super-ecs

  • SUP-SSE-006

Informations
  • Battery can be equipped with Samsung cell,LG cell,Panasonic cell or High power Chinese 18650 cell;

  • Battery can be customized as your requirements;

  • OEM/ODM orders are welcomed;

Battery Technical Data

Max cell space 18650  52 pcs
Configration 13S4P/10S5P
Material Aluminun 6061/PC+ABS
Charging port DC2.1 port
Discharging port Self-made 4pin
Lock Power lock
Capacity indicator W/O
Working temperature 0~45℃(charge);-20~60℃(discharge)
Warranty 1 Year
Weight Subject to the real object
Lithium Battery Features
  • Safety: safest Li-Ion battery, CE ROHS approved, built in PCM/PCB, none fire or explosive;

  • Clean and Green energy, no toxic material contained;

  • Long life cycle, 80% capacity remain after 500 times deep cycle;

  • No memory effect,highly efficient charge anytime, no reduction of capacity;

  • Small size, light weight;

  • Good performance at high temperature and high temperature resistance;

  • Low self-discharge rate: < 3% monthly;

  • Lithium cylindrical rechargeable batteries with PCB protection;

  • Internal PCB protection (patent pending design) protect battery from over charge,over discharge,over current and short circuit;

  • Battery tested before delivery to ensure capacity, quality and lifetime;

  • Pollution-Free/Long Cycle Life/Good Consistency;

  • Large manufacturers, short delivery time, price advantage;

Product Photos

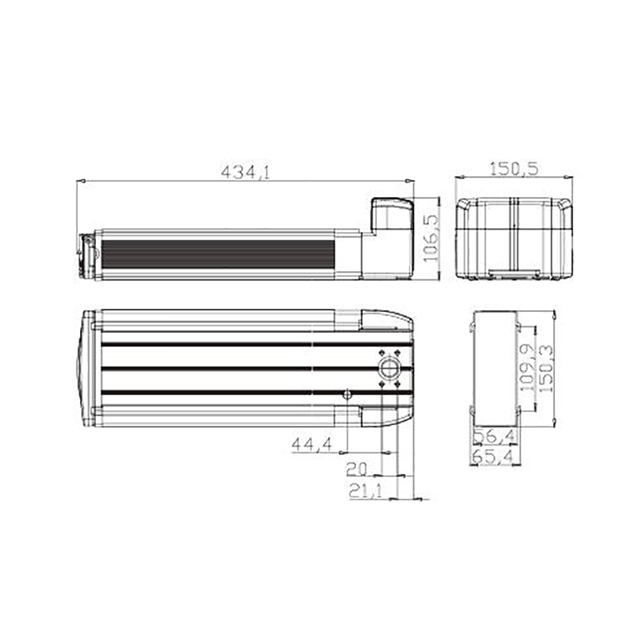

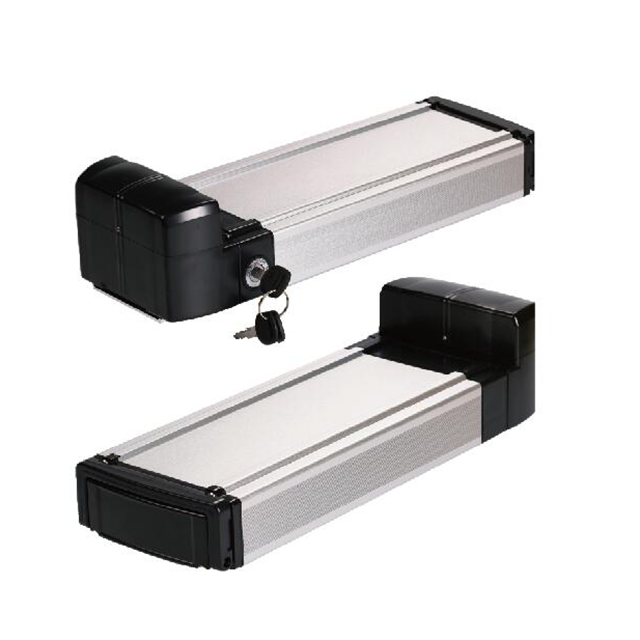

主图1主图2

Vibration Test After standard charging, put battery on the vibration table. 30min experiment from X, Y, Z axis. Scan rate: 1oct/min; Frequency10-30Hz, Swing 0.38mm; Frequency 30-55Hz, Swing 0.19mm. no influence to batteries electrical performance and appearance.
