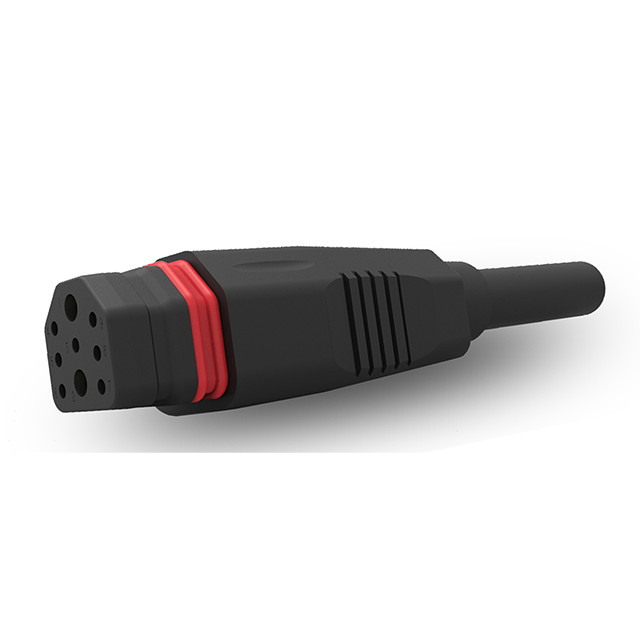

F.B-Z913C
Super-ecs
SUP-F.B-Z913C
| Product Introduction |
Customizable Solutions
Waterproof battery Harness
| Electrical properties | |
| scope of application | The electric bike, Scooter，motorcycle, industry；The LED industry and so on. |
| Types | waterproof plug/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug |
| Interface type | AC/DC |
| Use wire gauge | 1.5mm²+0.15mm² |
| Feature | waterproof |
| Joint material | PVC/PBT/PA66 / PC + ABS |
| Contact material | pure phosphor copper |
| Pin number | 9 needle |
| Plug and unplug | Insertion force 80N Max, pull out force 30N Min |
| Rated voltage | 60V AC/DC |
| Rated current | Power15A,Signal 2A |
| Withstand voltage | 700V(special require should be mentioned in advance) |
| Working temperature | -25℃~+80℃ |
| Protection grade | IP67 |
| Cable length | 71mm（any long can be customized for customer request） |
| Insulation resistance | ≥20MΩ |
| Contact resistance | ≤10mΩ |
| Certification | can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire |
| outer diameter | 13mm |
