Higo high quality 2power 6signal pin motorcycle Lithium battery Discharging Charging for ebike waterproof cable connector

Color:
Samples:
price:
Availability:
Quantity:
  • F.B-S824A

  • Super-ecs

  • SUP-F.B-S824A

Product Introduction
  • Customizable Solutions

  • Waterproof battery Harness

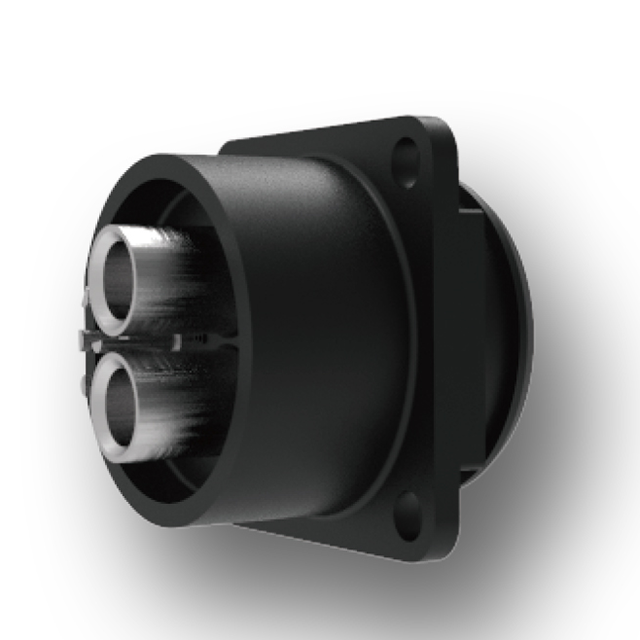

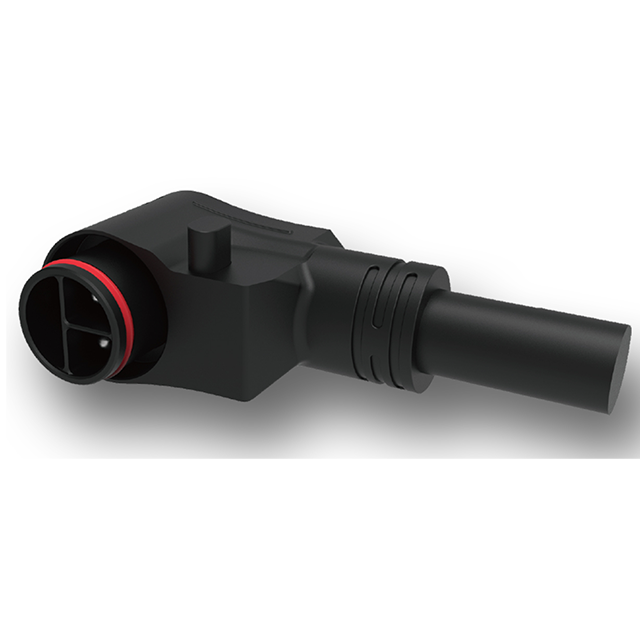

主图1主图2

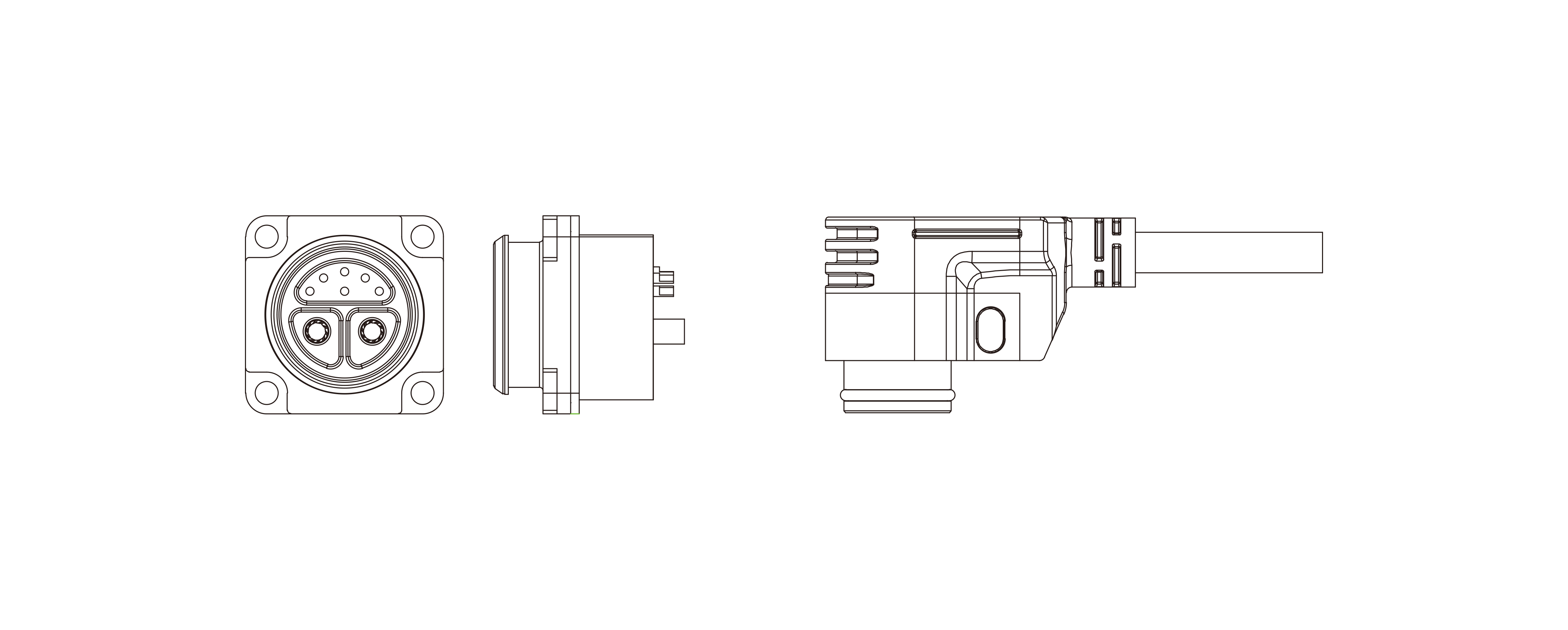

20220418_152800_039

Electrical properties
scope of application The electric bike, Scooter,motorcycle, industry;The LED industry and so on.
Types waterproof plug/waterproof connectors/Multi-split  waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface type AC/DC
Use wire gauge 10mm²+0.2mm²
Feature waterproof
Joint material PVC/PBT/PA66 / PC + ABS
Contact material pure phosphor copper
Pin number 8 needle
Plug and unplug lock connection

Rated voltage 60V AC/DC
Rated current Power 70A;Signal 2A
Withstand voltage 700V(special require should be mentioned in advance)
Working temperature -25℃~+80℃
Protection grade IP67
Insulation resistance ≥20MΩ
Contact resistance ≤10mΩ
Certification can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire
Cable length 43mm(any long  can be customized for customer request)
outer diameter 25mm
