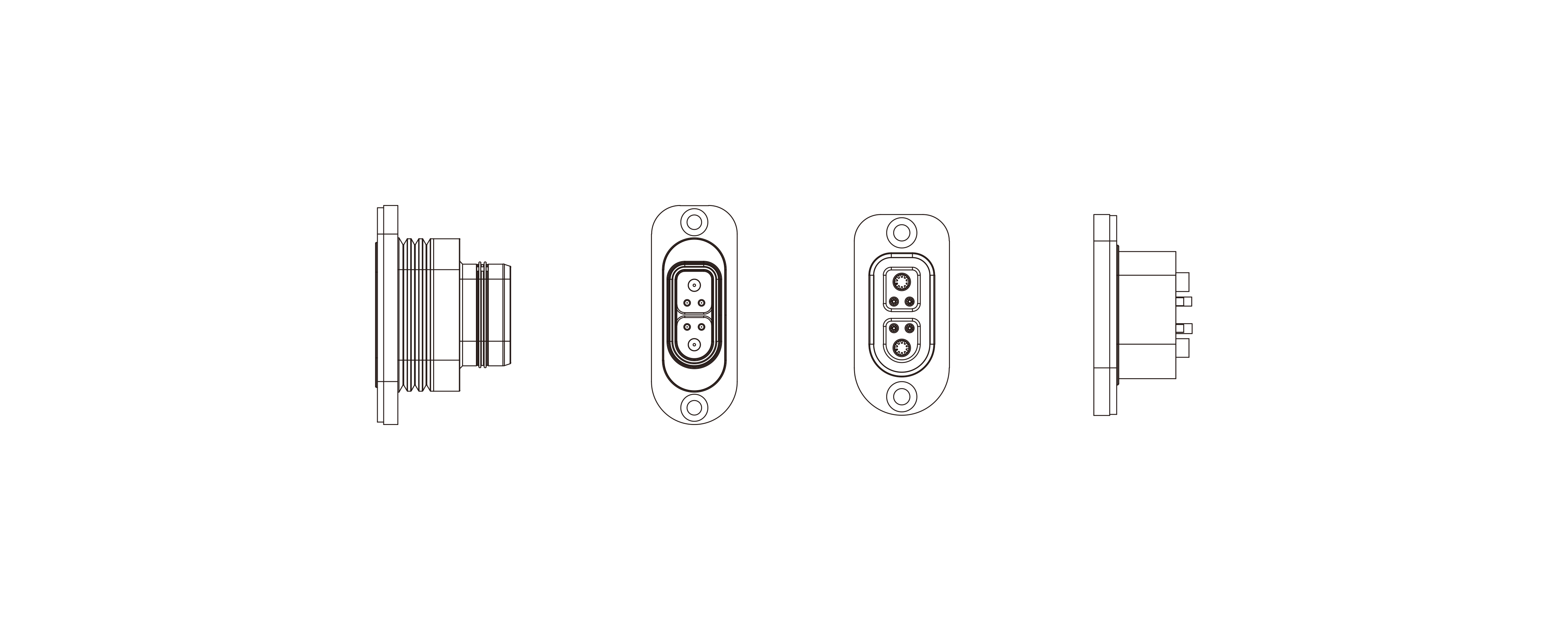

F.B-F621
Super-ecs
SUP-F.B-F621
| Product Introduction |
Customizable Solutions

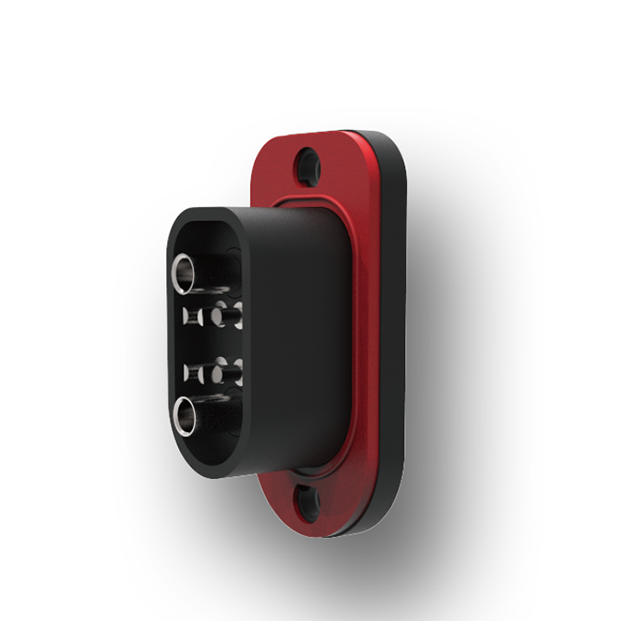

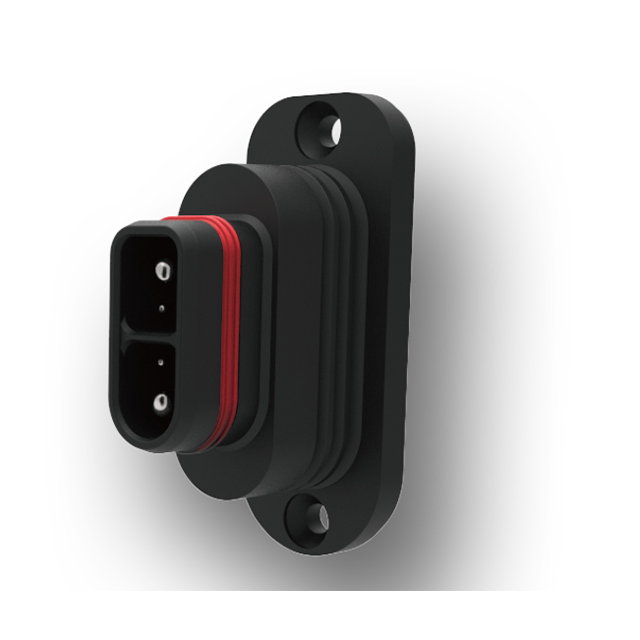

Waterproof battery Harness
| Electrical properties | |
| scope of application | The electric bike, Scooter，motorcycle, industry；The LED industry and so on. |
| Types | waterproof plug/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug |
| Interface type | AC/DC |
| Use wire gauge | 3.0mm²+0.2mm² |
| Feature | waterproof |
| Joint material | PVC/PBT/PA66 / PC + ABS |
| Contact material | pure phosphor copper |
| Pin number | 6 needle |
| Plug and unplug | Insertion force 80N Max, pull out force 20N Min |
| Rated voltage | 60V AC/DC |
| Rated current | Power 30A;Signal 2A |
| Withstand voltage | 700V(special require should be mentioned in advance) |
| Working temperature | -25℃~+80℃ |
| Protection grade | IP67 |
| Insulation resistance | ≥20MΩ |
| Contact resistance | ≤10mΩ |
| Certification | can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire |
| Cable length | 31.5mm（any long can be customized for customer request） |
| outer diameter | 21mm |
