1.69-inch left-mounted color-screen instrument Multi-color Gear display for ebike

Color:
Samples:
price:
Availability:
Quantity:
  • HG-Y2

  • Super-ecs

  • SUP-HG-Y2

PRODUCT ADVANTAGES

This is a 1.69-inch left-mounted color-screen instrument with delicate and compact shape,  which can be adapted to difffferent models and curved buttons to improve the pressing  experience.

  • OCA Full-Fit

  • IPX7 Waterproof

  • Multi-color Gear

  • Board End Connector

  • Type-C Charging Port

  • Wide Voltage:10V-100V

  • Support UART/CAN Protocol

  • Soda Lime Glass Hardness Value:6h

  • Customized Backlight Module:420cd/㎡

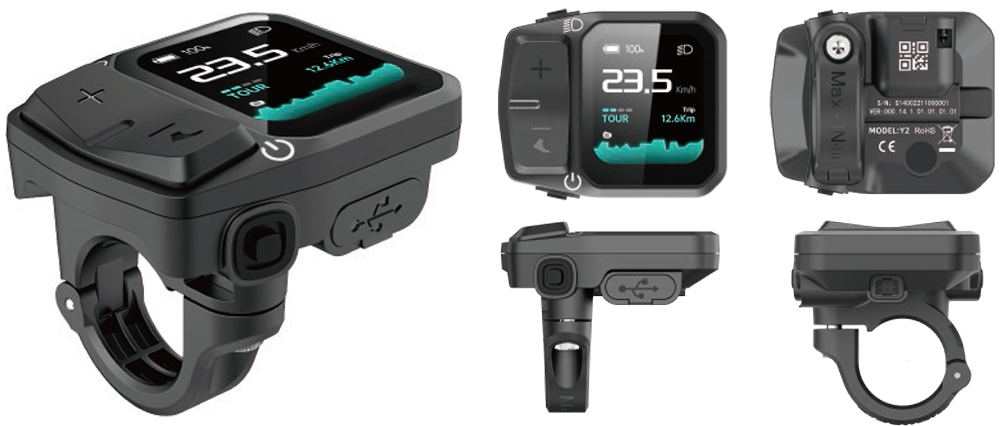

PRODUCT PICTURE

2

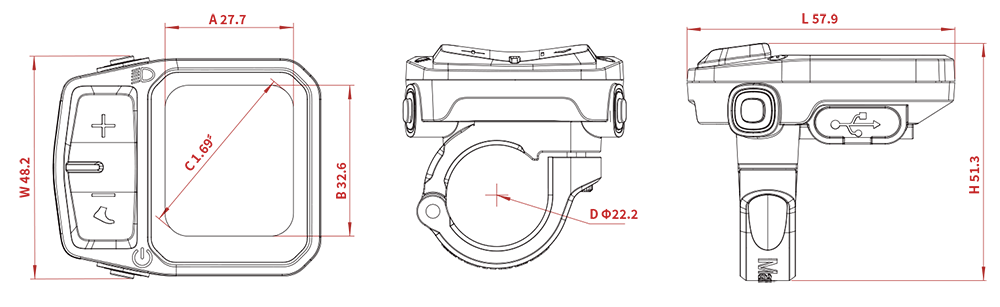

PRODUCT SIZE

3

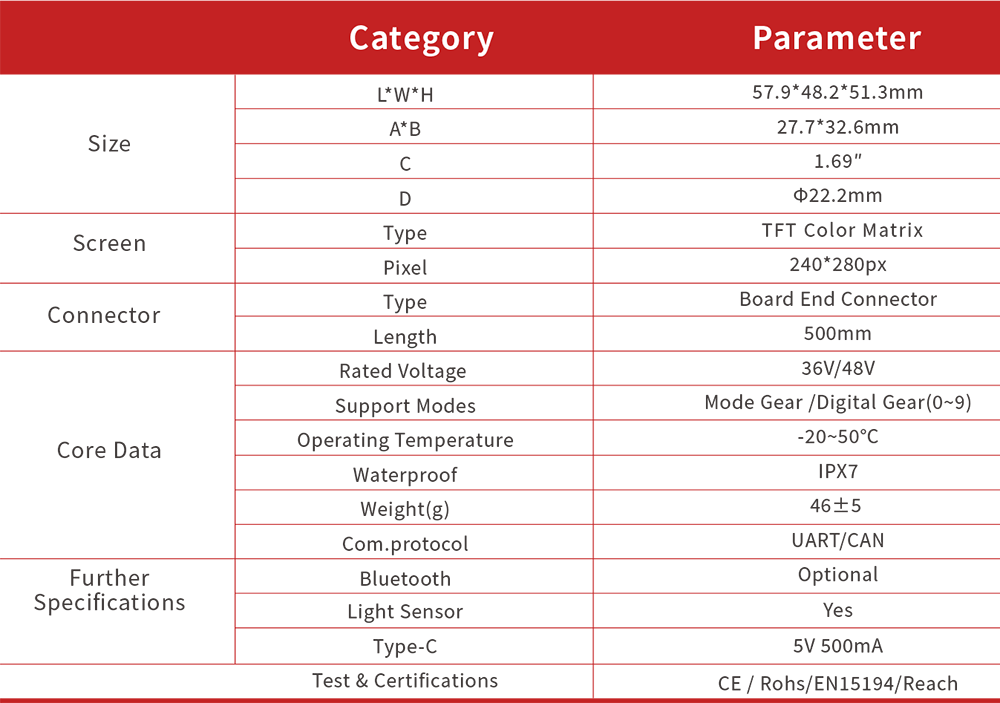

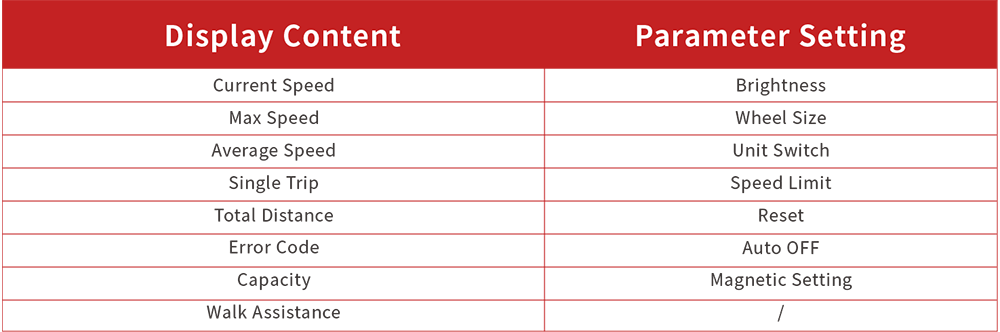

PRODUCT PARAMETERS

45
