High cost-effective display segment-code LCD screen Bluetooth function for Ebike

Color:
Samples:
price:
Availability:
Quantity:
  • HG-M1

  • Super-ecs

  • SUP-HG-M1

PRODUCT ADVANTAGES

This is a high cost-effffective display instrument.  The negative display segment-code LCD screen with white characters on black background  looks more fashionable than the traditional segment-code LCD screen, which will meet a  difffferent demand of the customers.

  • OCA Full-Fit

  • IPX7 Waterproof

  • Board End Connector

  • Support UART/CAN Protocol

  • Soda Lime Glass Hardness Value:6h

  • Customized Backlight Module:450cd/㎡

  • LCD-VA Screen

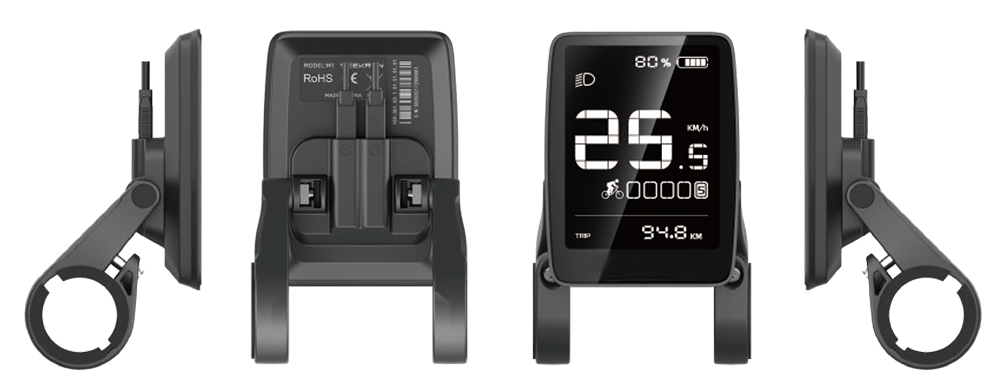

PRODUCT PICTURE


2

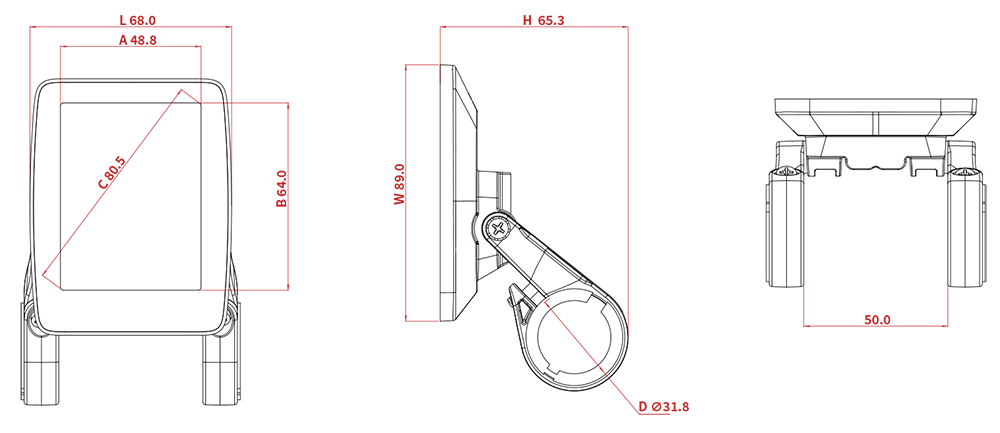

PRODUCT SIZE

3

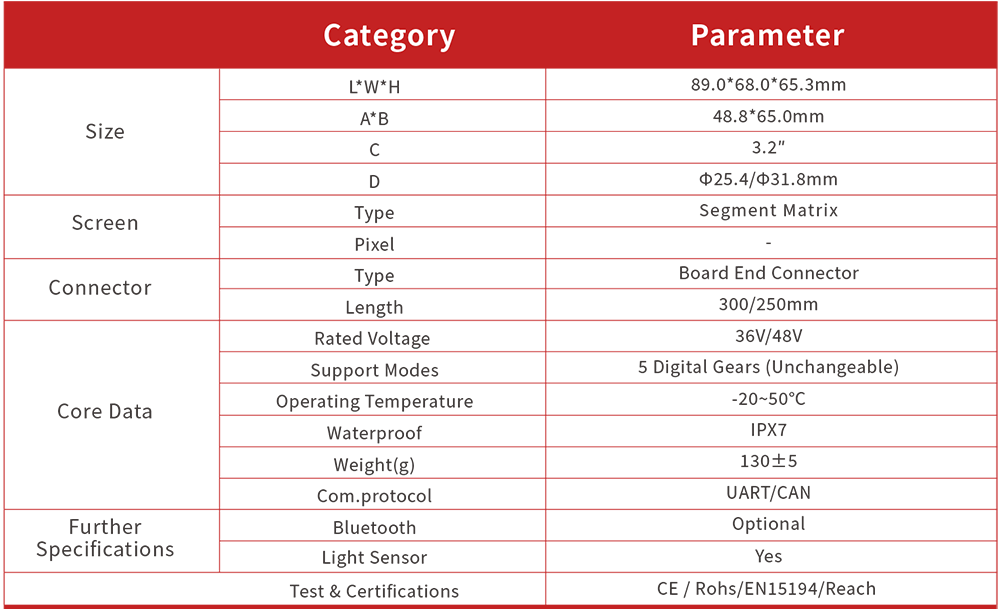

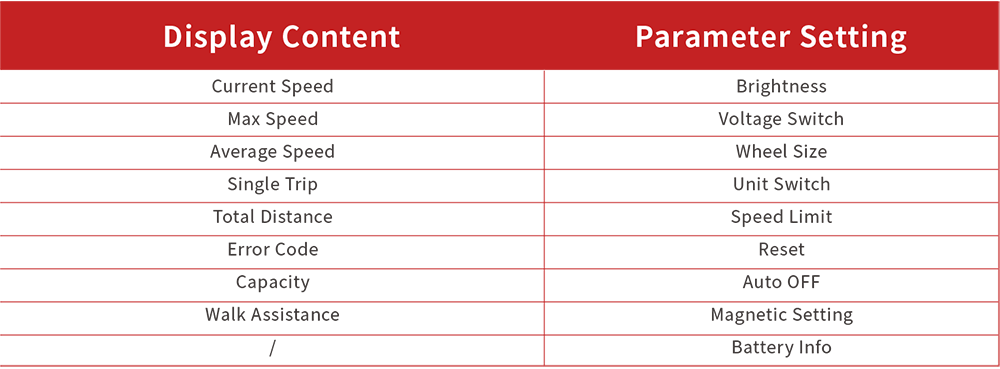

PRODUCT PARAMETERS

45
