AKM135RX (RC1)
Super-ecs
SUP-AKM135RX (RC1)
| Product parameters |
| Bike Recommendation | E-FAT | Efficiency(%) | ≥80 |

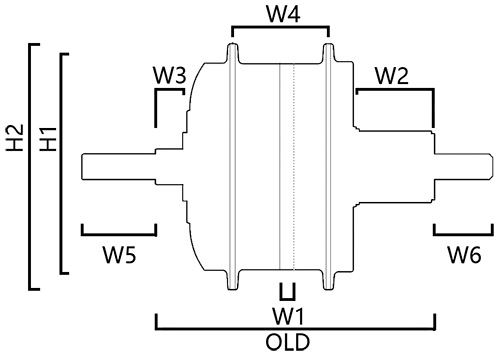

| Size : H1 / H2 | 156mm / 178mm | Weight (kg) | 4.5/4.8 |
| W1 / W2 | 4.5mm / 40mm | Speed(km) | 45 |
| W3 / W4 | 15.5mm / 70mm | Noise Grade (dB) | ＜60 |
| W5 / W6 | 31mm / 31mm | Operating Temperature | -20℃~45℃ |
| Installation Widths (mm/OLD) | 175mm/190mm | Cabling Route | Optional |
| Rated Power | 750W/1000W | Spoke Parameter | 36H*13G (Optional) |
| Rated Voltage(DCV) | 48V/60V | Line Way | LEFT |
| Wheel Size(Inch) | 20"~29" | IP Level | 65 |
| Max Torque(N.m) | 90/100 | Certification | CE/RoHS/EN 15194 |
