24V 36V 48V 250W 25km/h e bike conversion kit ebike waterproof IP65 brushless rear wheel Electric Bicycle hub Motor

Rated Power: 250W
Installation Widths (mm/OLD) : 135mm
Max Torque(N.m)​ : 42
Bike Recommendation : E-ROAD
Color:
Samples:
price:
Availability:
Quantity:
  • AKM85SX (R1)

  • Super-ecs

  • SUP-AKM85SX (R1)-005

Product parameters

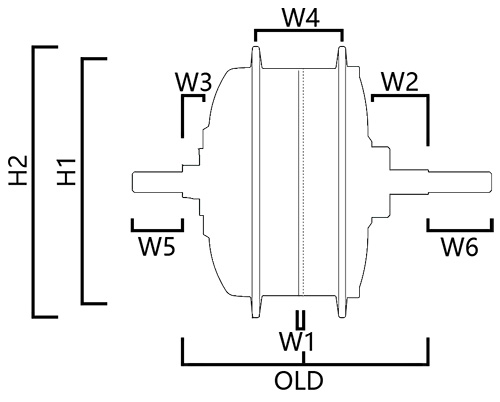

1632720364431149 (1)

Bike Recommendation E-ROAD Size : H1 / H2 109mm /120mm
W1 / W2 7.5mm / 42.3mm W3 / W4 15.5mm / 42mm
W5 / W6 25mm / 25.5mm Installation Widths (mm/OLD) 135mm
Rated Power 250W Rated Voltage(DCV) 24V/36V/48V
Wheel Size(Inch) 16"~28" Max Torque(N.m) 42
Efficiency(%) ≥80 Weight (kg) 1.9
Speed(km) 25 Noise Grade (dB) <55
Operating Temperature -20℃~45℃ Cabling Route Optional
Spoke Parameter 36H*13G (Optional) Line Way Left
IP Level 65 Certification CE/RoHS/EN 15194
