250w 350w Brushless inner gear drive motor Rear hub motor for city ebike

Color:
Samples:
price:
Availability:
Quantity:
  • AKM95RX (R1)

  • Super-ecs

  • SUP-AKM95RX (R1)

Product parameters

2

Bike Recommendation E-CITY Efficiency(%) ≥80

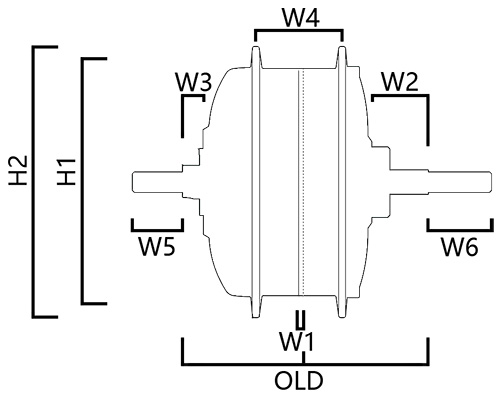

Size : H1 / H2 122mm / 134mm Weight (kg) 2.5
W1 / W2 3mm / 38mm Speed(km) 27/32
W3 / W4 15.3mm / 42mm Noise Grade (dB) <55
W5 / W6 30mm / 35mm Operating Temperature -20℃~45℃
Installation Widths (mm/OLD) 135mm Cabling Route Optional
Rated Power 250W/350W Spoke Parameter 36H*13G (Optional)
Rated Voltage(DCV) 24V/36V/48V Line Way Right
Wheel Size(Inch) 20"~28" IP Level 65
Max Torque(N.m) 50 Certification CE/RoHS/EN 15194
