DIY electric bike kit 250w 24v 36v ebike conversion kit / lightweight electric bicycle Brushless front wheel hub motor

Rated Power: 250W
Installation Widths (mm/OLD) : 75mm
Max Torque(N.m)​ : 30
Bike Recommendation : E-ROAD
Product description: Our 85SX Series e-bike front hub motor is one of the best electric bike motors on the market.The features are lightweight,only 1.6 kg, Max torque 30N.m , efficiency 80%.
Color:
Black / Silver
Samples:
≥1pcs
price:
Depend on quantity
Availability:
Quantity:
Inquire Add to Basket

  • AKM85SX (F1)

  • Super-ecs

  • SUP-AKM85SX-002

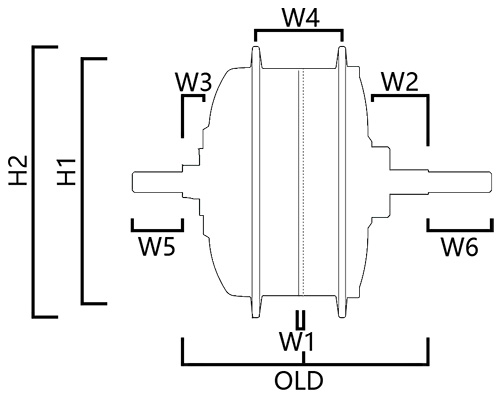

Product parameters

1632720310113308

Bike Recommendation E-ROAD Size : H1 / H2 109mm / 120mm
W1 / W2 0mm / 6.7mm W3 / W4 6.7mm / 38mm
W5 / W6 14mm / 11mm Installation Widths (mm/OLD) 75mm
Rated Power 250W Rated Voltage(DCV) 24V/36V
Wheel Size(Inch) 16"~20" Max Torque(N.m) 30
Efficiency(%) ≥80 Weight (kg) 1.6
Speed(km) 25 Noise Grade (dB) ＜55
Operating Temperature -20℃~45℃ Cabling Route Optional
Spoke Parameter 36H*13G (Optional) Line Way Left
IP Level 65 Certification CE/RoHS/EN 15194
