Ebike Motor 24v 36v 48v 350w 500w 800w Electric Bike 175mm 190mm Rear Hub Motor geared Motor for fat electric bicycle

Color:
Black
Silver
Samples:
≥1pcs
price:
Depend on quantity
Availability:
Quantity:
Inquire Add to Basket

  • AKM130RX (RC1)

  • Super-ecs

  • SUP-AKM130RX (RC1)

Product parameters

2

Bike Recommendation E-FAT Efficiency(%) ≥80

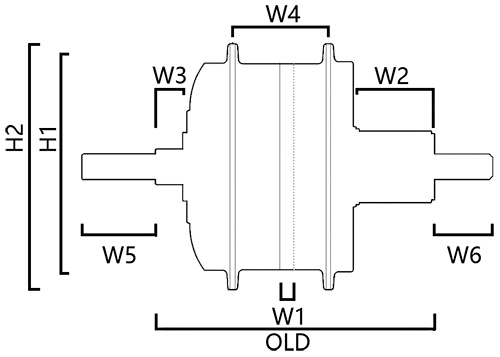

Size : H1 / H2 143mm / 153mm Weight (kg) 3.8/4.1/4.5
W1 / W2 2mm / 42mm Speed(km) 35/40/45
W3 / W4 15.5mm / 72mm Noise Grade (dB) ＜55
W5 / W6 30mm / 35mm Operating Temperature -20℃~45℃
Installation Widths (mm/OLD) 175mm/190mm Cabling Route Optional
Rated Power 350W/500W/800W Spoke Parameter 36H*13G (Optional)
Rated Voltage(DCV) 24V/36V/48V Line Way Right
Wheel Size(Inch) 20"~26" IP Level 65
Max Torque(N.m) 50/65/80 Certification CE/RoHS/EN 15194
