F.B-Z728
Super-ecs
SUP-F.B-Z728
Product Introduction |

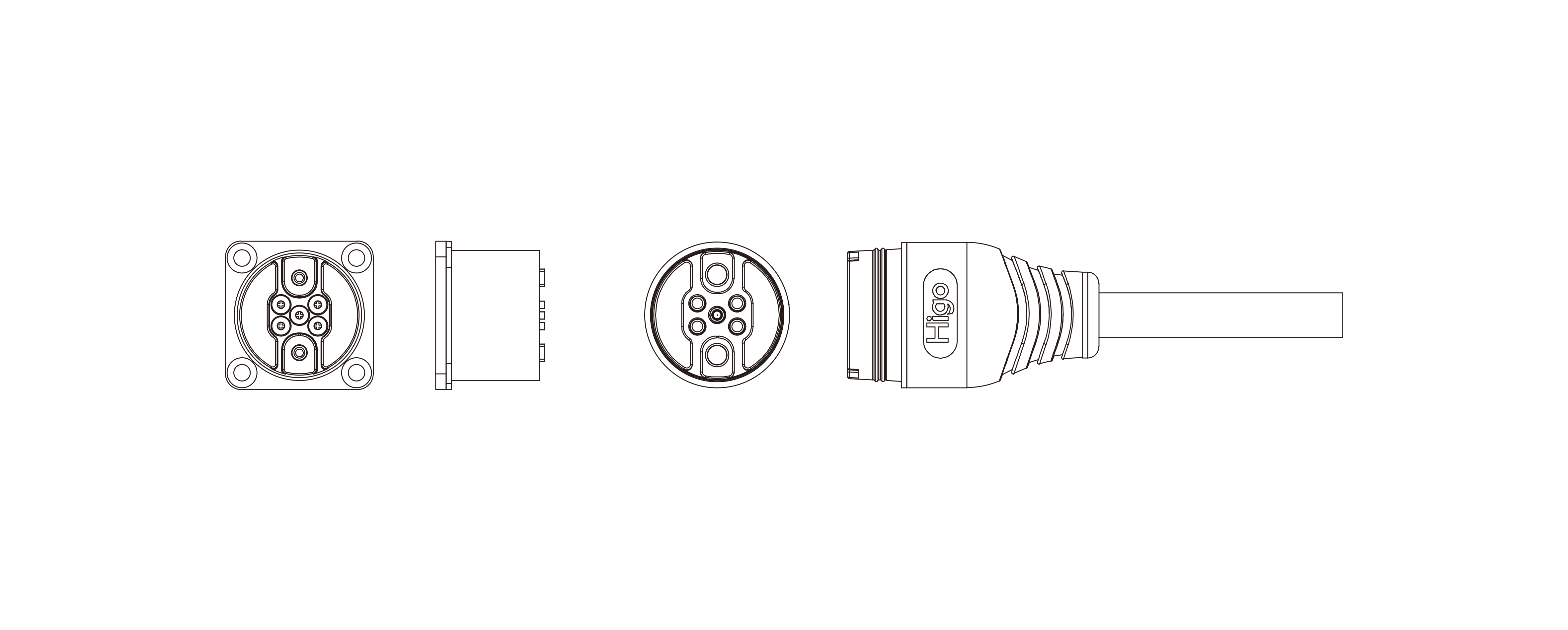

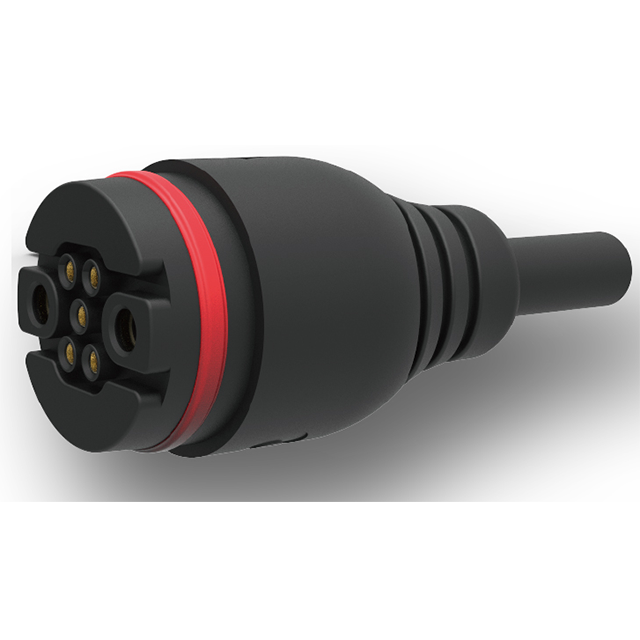

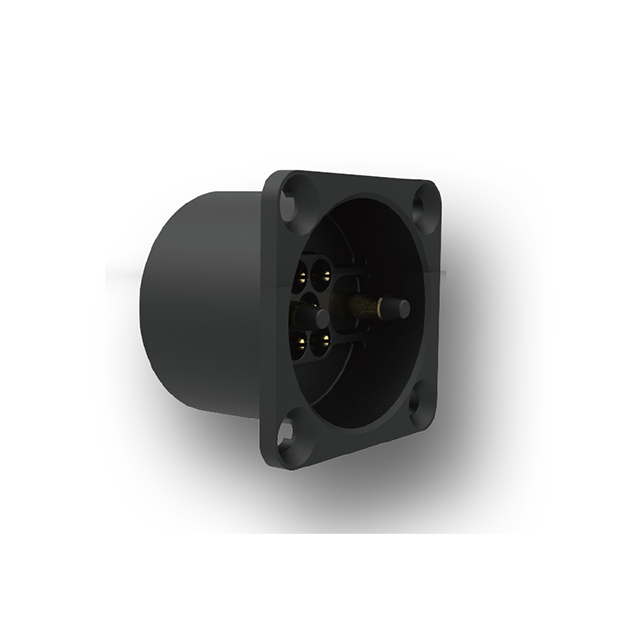

Waterproof battery Harness
Electrical properties | |
scope of application | The electric bike, Scooter,motorcycle, industry;The LED industry and so on. |
Types | waterproof plug/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug |
Interface type | AC/DC |
Use wire gauge | 2.5mm²+0.2mm² |
Feature | waterproof |
Joint material | PVC/PBT/PA66 / PC + ABS |
Contact material | pure phosphor copper |
Pin number | 5 needle |
Plug and unplug | Magnetic structure |
Rated voltage | 60V AC/DC |
Rated current | Power 25A;Signal 2A |
Withstand voltage | 700V(special require should be mentioned in advance) |
Working temperature | -25℃~+80℃ |
Protection grade | IP67 |
Insulation resistance | ≥20MΩ |
Contact resistance | ≤10mΩ |
Certification | can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire |
Cable length | 55.4mm(any long can be customized for customer request) |
outer diameter | 26mm |
Product Introduction |
Waterproof battery Harness
Electrical properties | |
scope of application | The electric bike, Scooter,motorcycle, industry;The LED industry and so on. |
Types | waterproof plug/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug |
Interface type | AC/DC |
Use wire gauge | 2.5mm²+0.2mm² |
Feature | waterproof |
Joint material | PVC/PBT/PA66 / PC + ABS |
Contact material | pure phosphor copper |
Pin number | 5 needle |
Plug and unplug | Magnetic structure |
Rated voltage | 60V AC/DC |
Rated current | Power 25A;Signal 2A |
Withstand voltage | 700V(special require should be mentioned in advance) |
Working temperature | -25℃~+80℃ |
Protection grade | IP67 |
Insulation resistance | ≥20MΩ |
Contact resistance | ≤10mΩ |
Certification | can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire |
Cable length | 55.4mm(any long can be customized for customer request) |
outer diameter | 26mm |
