Low Noise 250w 24v 36v 48v ebike Brushless Geared wheel Hub Motor Electric Bicycle Conversion Kits

Rated Power: 250W
Installation Widths (mm/OLD) : 82.5mm
Max Torque(N.m)​ : 35
Bike Recommendation : E-ROAD
Color:
Samples:
price:
Availability:
Quantity:
  • AKM85SX (F2)

  • Super-ecs

  • SUP-AKM85SX (F2)-003

Product description

Our 85SX Series e-bike front hub motor is one of the best electric bike motors on the market.The features are lightweight,only 1.7kg, Max torque 30N.m , efficiency 80%.

11

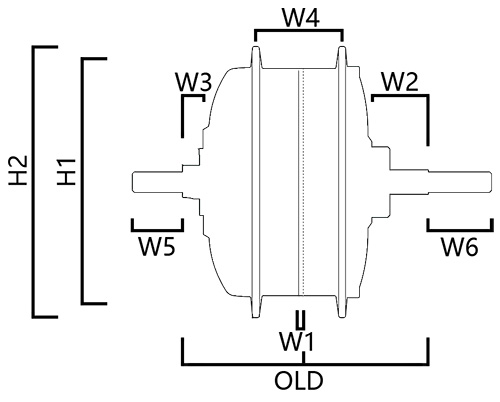

Bike Recommendation E-ROAD Size : H1 / H2 109mm / 120mm
W1 / W2 0.55mm / 7.5mm W3 / W4 6mm / 40mm
W5 / W6 32.5mm / 30mm Installation Widths (mm/OLD) 82.5mm
Rated Power 250W Rated Voltage(DCV) 24V/36V/48V
Wheel Size(Inch) 12"~28" Max Torque(N.m) 35
Efficiency(%) ≥80 Weight (kg) 1.7
Speed(km) 25 Noise Grade (dB) <55
Operating Temperature -20℃~45℃ Cabling Route Optional
Spoke Parameter 36H*13G (Optional) Line Way Left / Right
IP Level 65 Certification CE/RoHS/EN 15194
