ebike accessory brushless mid mount bicycle kit noiseless central motor system electric bike mid drive motor

Rated Power: 250W
Pedal Sensor : Torque
Shaft Standard : JIS
Bike Recommendation : E-CITY/E-ROAD
Color:
BLAKE
Samples:
≥1pcs
price:
Depend on quantity
Availability:
Quantity:
Inquire Add to Basket

  • AKMZ3

  • Super-ecs

  • SUP-AKMZ3-006

Product parameters

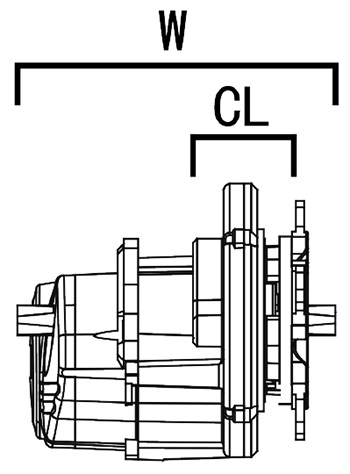

1632297749352619

Bike Recommendation E-CITY n0(Rpm) 66/94
Size (L x W x H) 176x 156 x 136mm Power Assist Ratio 36%~300%
(CL) 49mm Pedal Sensor Torque
Rated Power 250W Shaft Standard JIS
Efficiency(%) ≥80 Noise Grade (dB) ＜55
Reduction Ratio 41 Throttle Optional
Wheel Size(Inch) Optional E-Brake Yes
Rated Voltage(DCV) 24V/36V/48V Light Drive Capacity 6/2
Max Torque(N.m) 80 IP Level / Salt Spray Test 65/96
Weight(kg) 3.5 Certification CE/RoHS/EN 15194
