M-08
Super-ecs
SUP M-08-003
| PRODUCT DISPLAY |
| PRODUCT FEATURES |

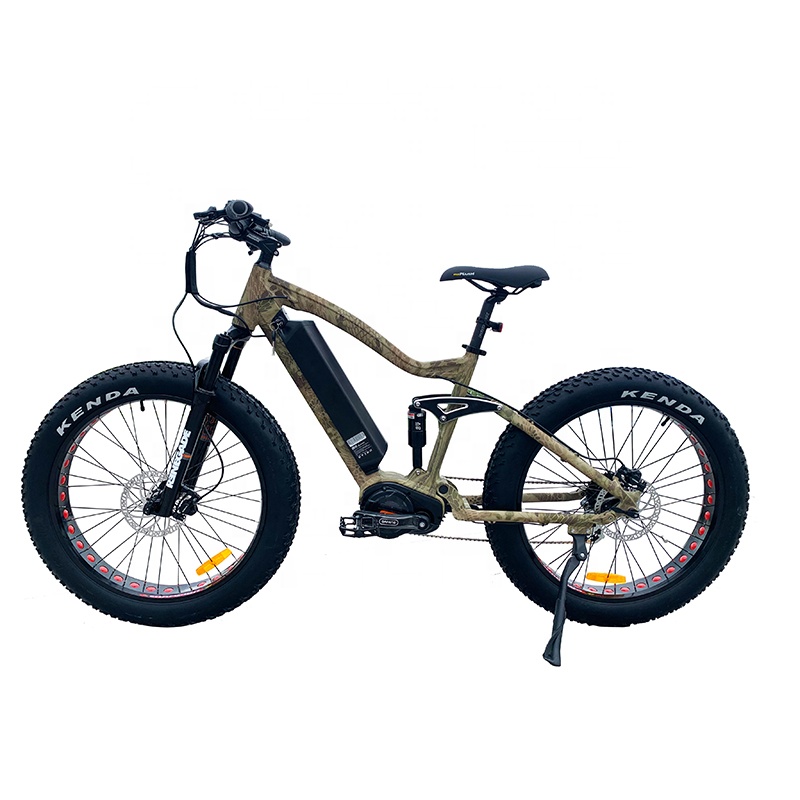

1. 1000W M600 BAFANG mid drive motor
| Frame | Aluminum alloy frame |
| Motor | 1000W M600 Bafang mid drive motor |
| Battery | 48V 13AH lithium battery |
| Display | LCD display |
| Light | LED light for front |
| Tire | 26"*4.0 KENDA Tire |
| Brake | Disc brake for both |

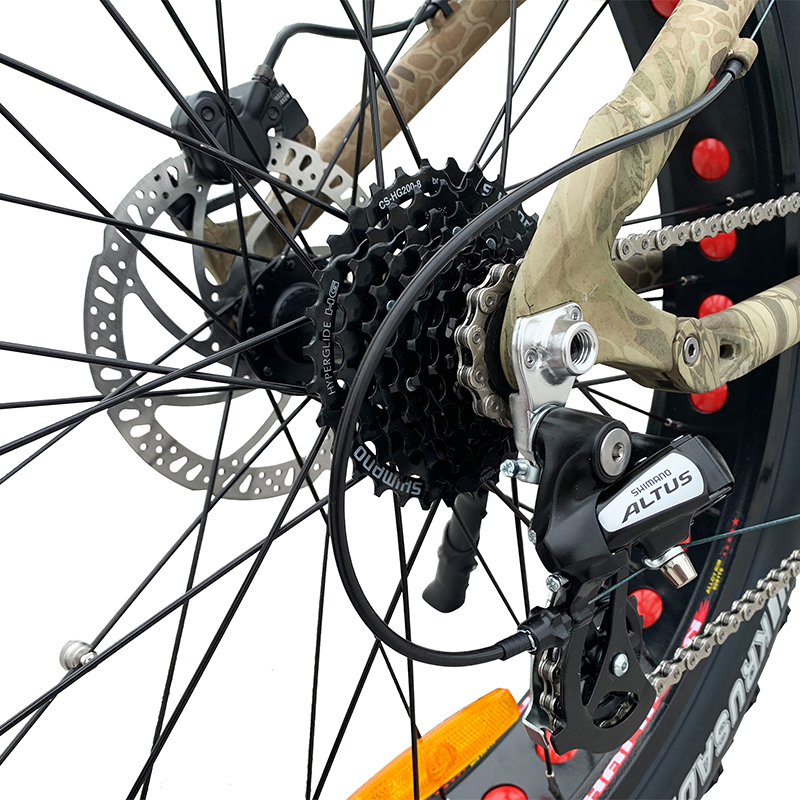

| Derailleurs | 7 speed shimano gear shift |
| Max speed | 25km-32km/H |
| Driving mode | PAS&Throttle |
| Driving distance | Approx 70-100km per charging |
| Loading capacity | 120kg |
| Packing size | 160*27*85cm |
| N.W./G.W. | 35KGS/40KGS |
| Container loads: | 80pcs/20'GP; 165pcs/40'HQ |
| PRODUCT DESCRIPTION |

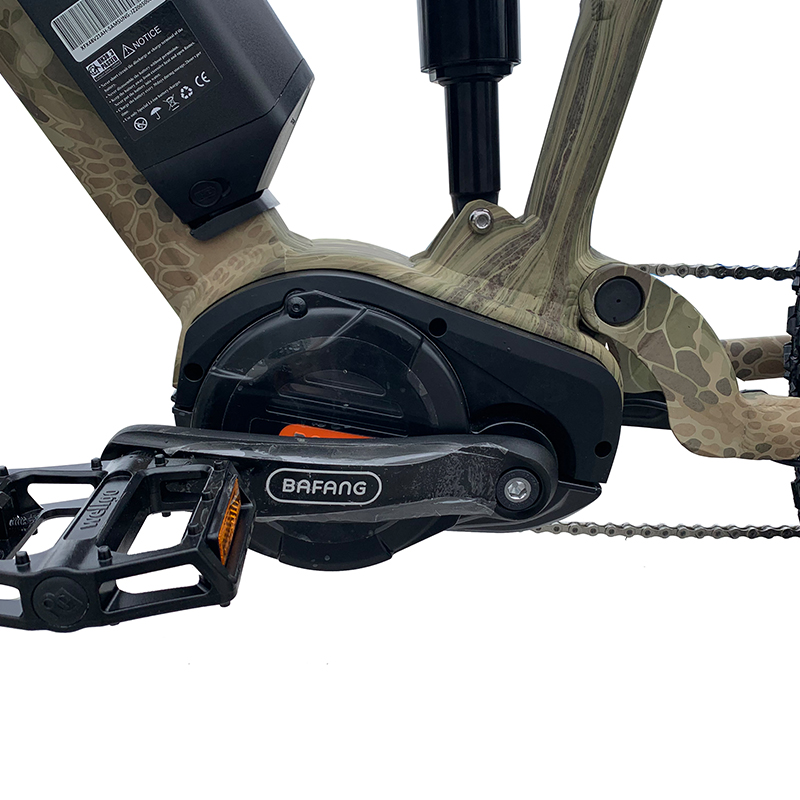

MOTOR（1000W M600 Bafang mid drive motor） DISPLAY（Bafang C18 colorful LCD display shows its speed, battery andmileage）

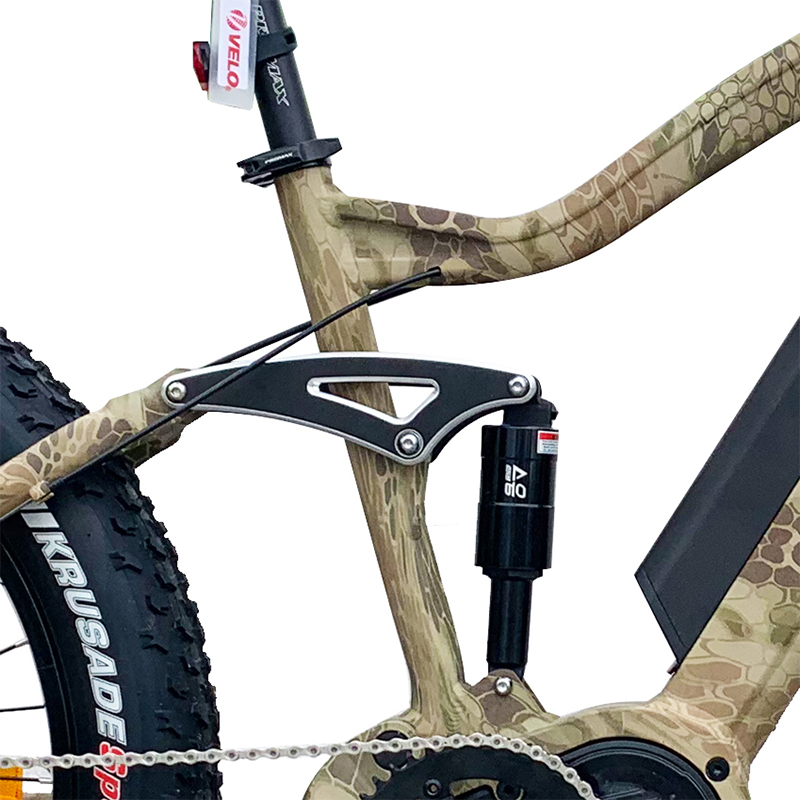

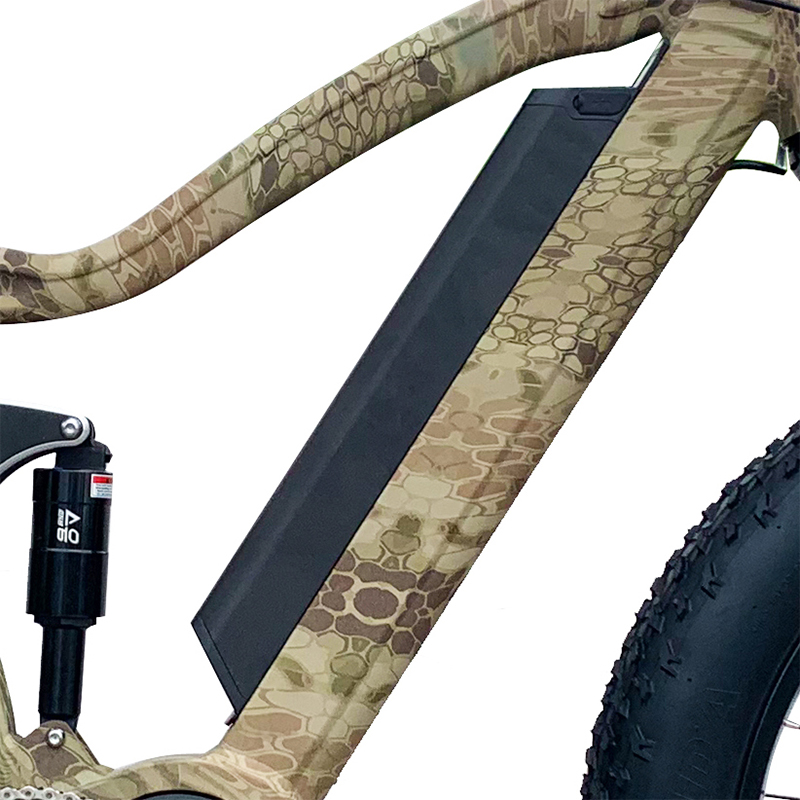

BATTERY（48V 13AH lithium removable battery，Samsung cells） FULL SUSPENSION（Full suspension give you a more comfortable riding experience）

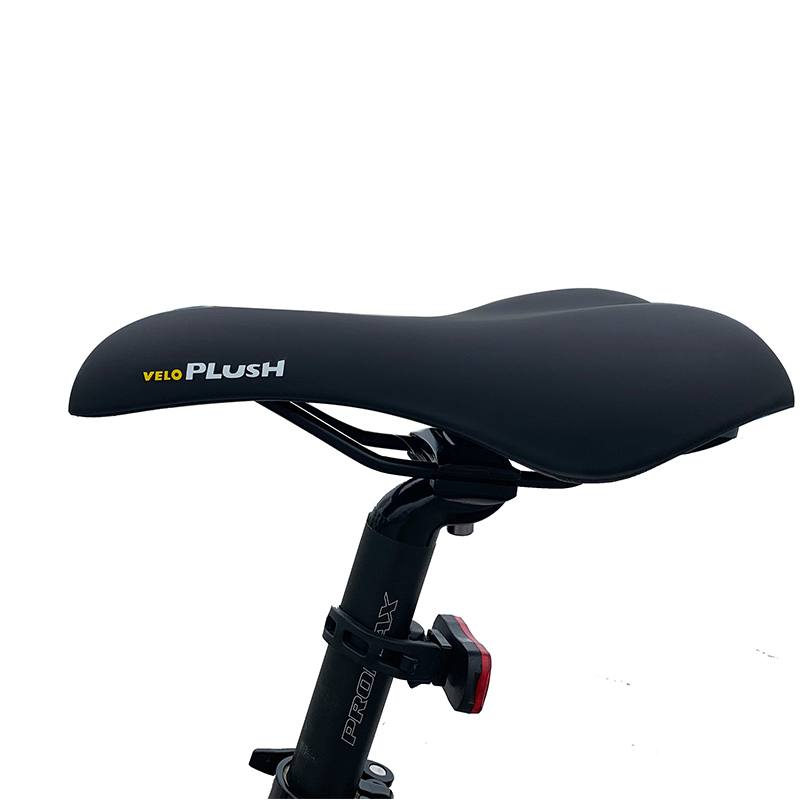

DERAILLEUR（7/9 speed Shimano gear shift） SEAT POST（Aluminum alloy with suspension）
| M400 BAFANG'S MID DRIVE - POWERFUL & LIGHT |
Bafang's newest and most innovative motor system
Tiny form factor
2000 watts with our controller
Over 95NM of torque
28 to 1 gear reduction
Torque sensor
Real estate is your most valuable commodity in an ebike. Big and powerful is easy but small, lightweight, and powerful is a gigantic feat.The M400 is the most stable offering from Bafang, designed for integration with production bikes.SUPER-ECS has worked with prototypes of this drive for 2 years,and with SUPER-ECS'S own proprietary touches to make it smooth, powerful and most importantly, reliable.

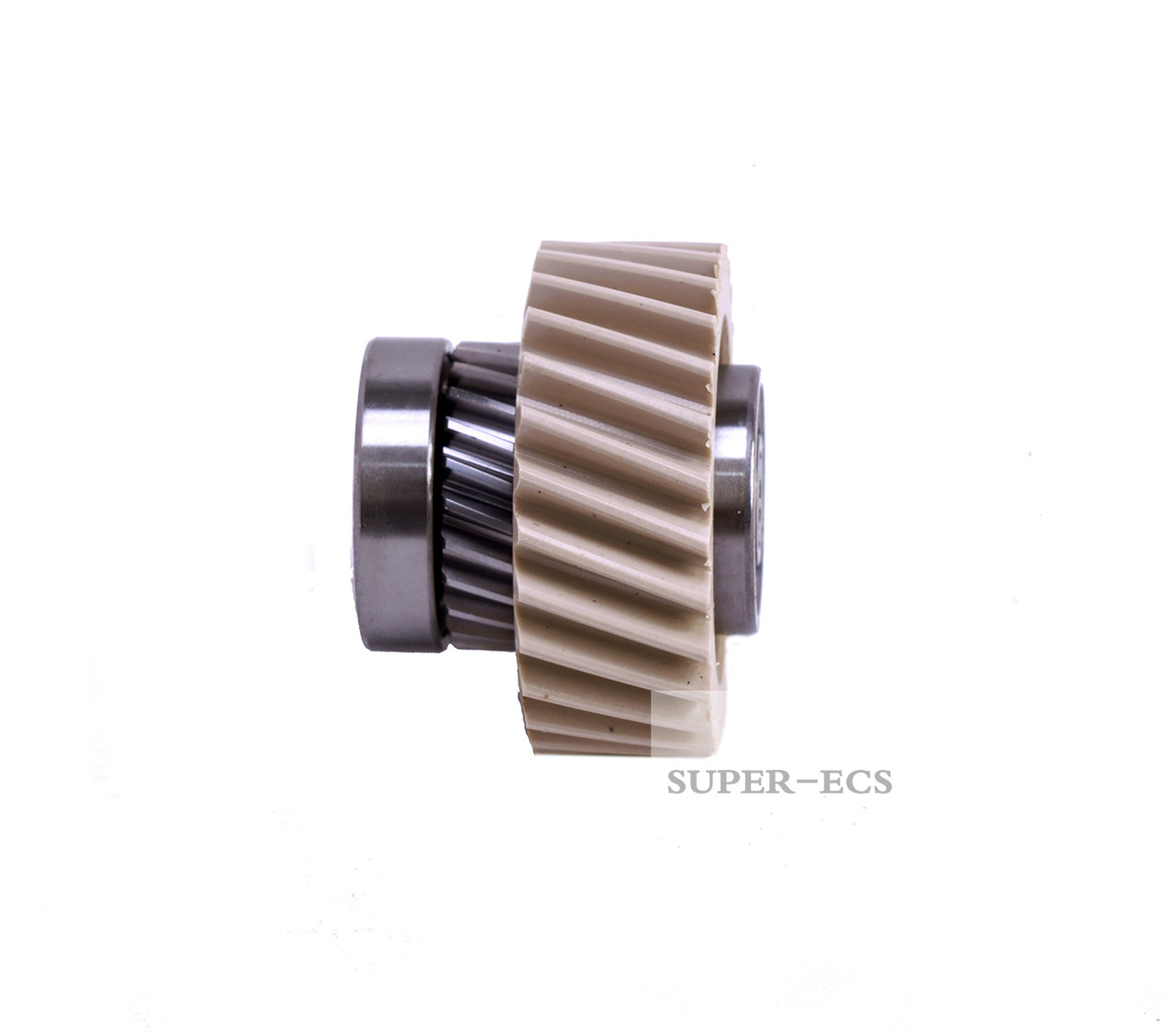

The 28 to 1 gear reduction using one of the most advanced gear reductions in the industry is not only quiet (for an all metal gearbox), but now with steel gears it is also reliable. The importance of gear reduction in a bike like this is not only does the motor spin at its most optimum efficiency level, (electric motors love to spin fast) the gear reduction has the final sprocket spinning slow enough so that you actually get pedal cadence at high power, a very hard thing to accomplish on a high power drive.
| CUSTOMER SUPPORT |
2 years on the Electronic control system
1 year on the battery
6 months on the other components
Tips: One-stop ODM processing service
