KD286
Super-ecs
SUP-KD286
| Product name and model |

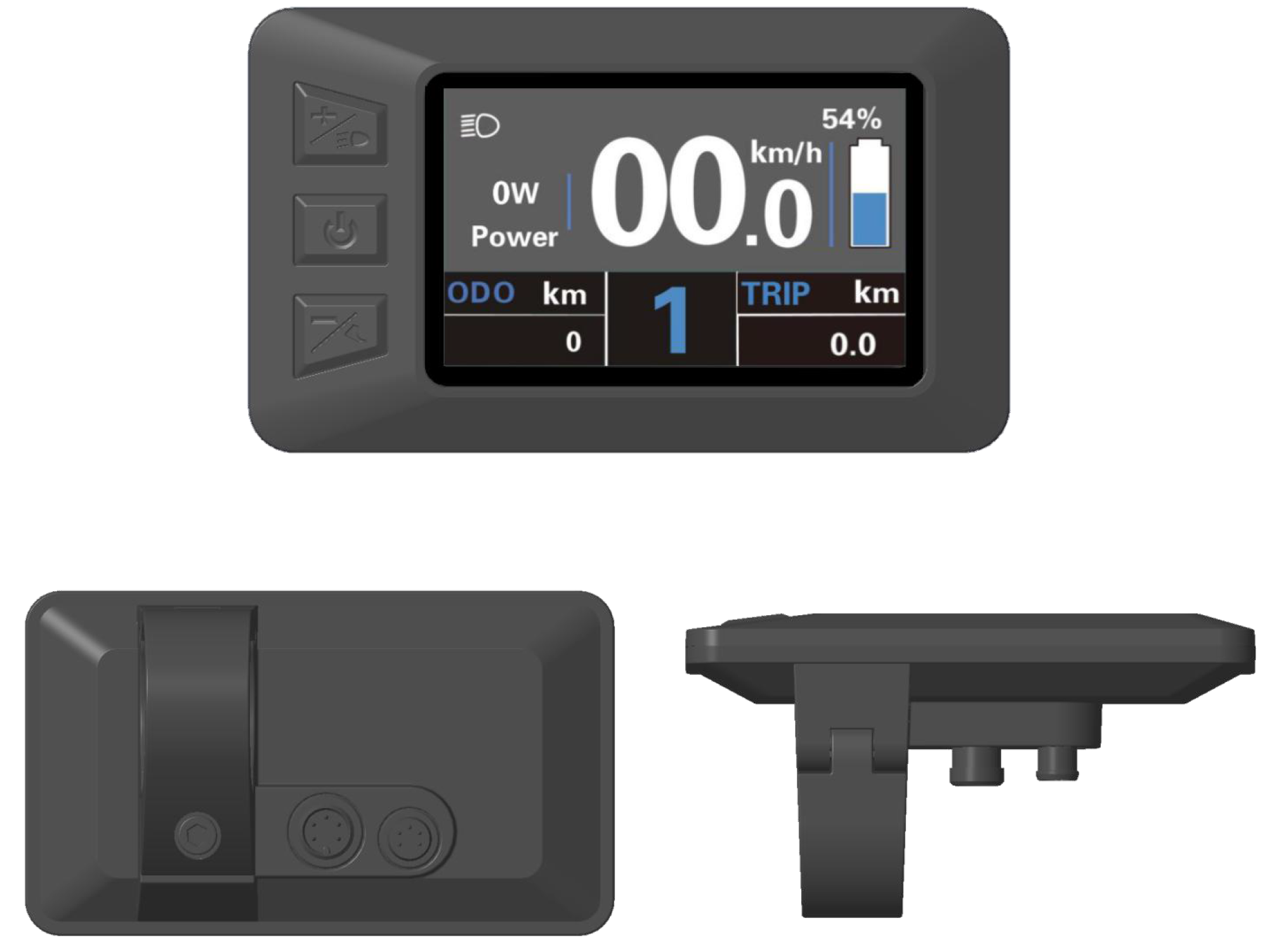

E-bike Intelligent TFT display;
Model: KD286( without USB); KD286U( with USB).
| Specifications |
36V/48V Power Supply;
Rated working current :28mA;
The maximum working current: 30mA;
Off-state leakage current: <1μA;
Operating temperature: -20℃~ 60℃;
Storage temperature: -30℃~ 70℃

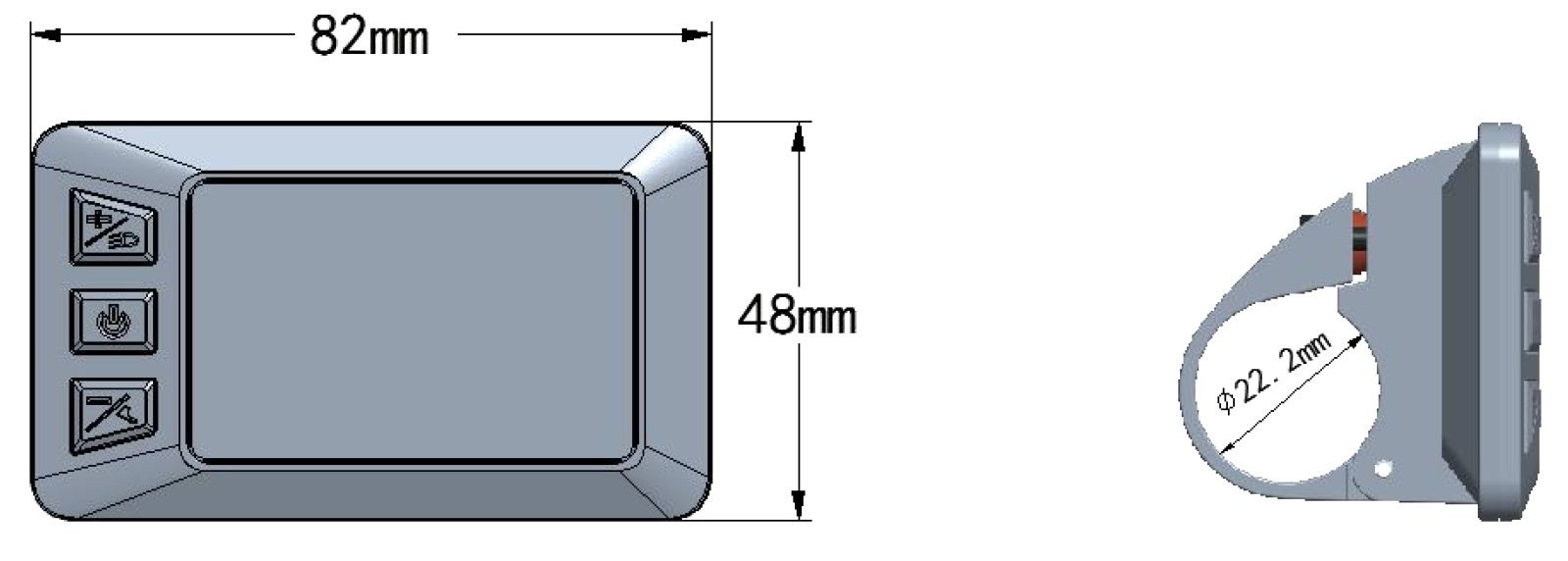

| Appearance and Size |
| Function Summary |
KD286 display has many functions to meet the user’s needs. The indicating contents are as follows:
Smart battery SOC, real-time voltage or percentage, optional;
USB charging port and indication icon;
Intelligent indication of Trip, ODO, RT speed, Max. Speed, Avg Speed, Power and Trip time( Min);
Assist level adjustment and indication;
Backlight control and lighting indicator;
The push-assist control and indication;
Error code indication;
Various Parameters Settings (e.g., trip clearance, backlight setting, Unit toggling wheel size, speed limit, battery power bar setting, assist level setting, power-on password enable, etc.)
Factory Settings.

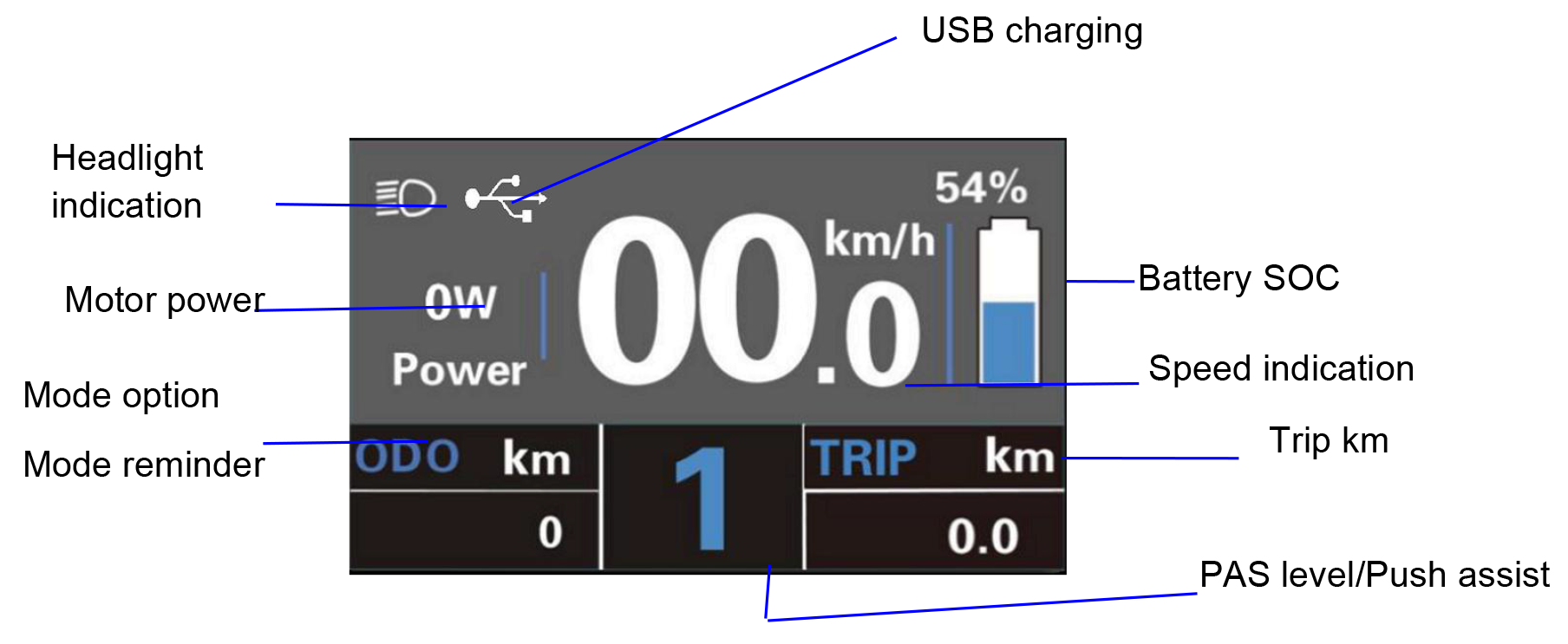

| Functional Area Distribution |
