Ebike And E-scooter LCD And LED Display

Availability:
Quantity:


Specification:


Display screen material 3.5inch TR
Handlebar sizes(Φ/mm) 22.2/25.4/31.8
Shell material ABS and PC
Window material Acrylic
Switch cable length(mm) 300/350
Bluetooth Optional
USB charging YES
Special function Screen is rotatable
Waterproof Rate: IPX5
Certification: CE/ROHS/EN15194
Display information:
Real-time speed(km/h) YES
Rated speed(km/h) YES
Single riding time YES
Single riding distance YES
Total Distance YES
Endurance mileage YES
Battery information YES
Error code and error issues description  YES
6KM Walk Boost YES
Clock YES
Screen Type LCD
Display type TFT
Rated Voltage(V) 24/36/48/52/60/72
Speed levels 0-3/0-5/0-9
Working Temp(℃) -20~45
Communication protocols CAN/UART

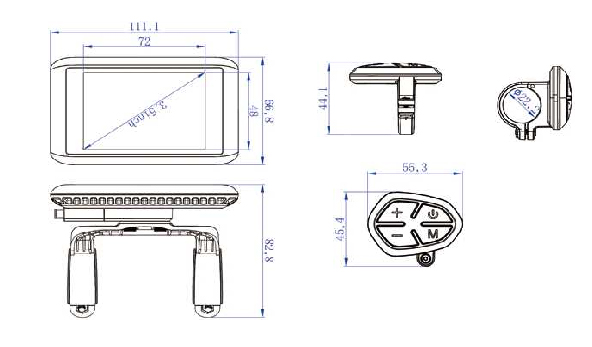

datil
