Just one
Super-ecs
SUP-JUST ONE
| Appearance and Size |
Just One product is made of plastic (PC) materials, the working temperature scope of the housing
material is -20℃—+60℃, the shell material can ensure normal use and good mechanical
performance of the products.

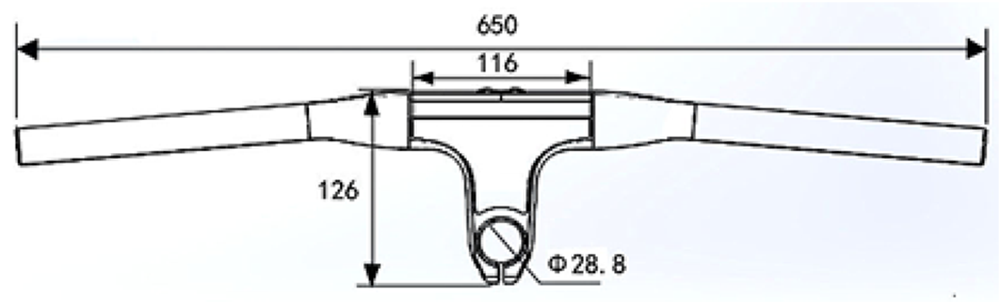

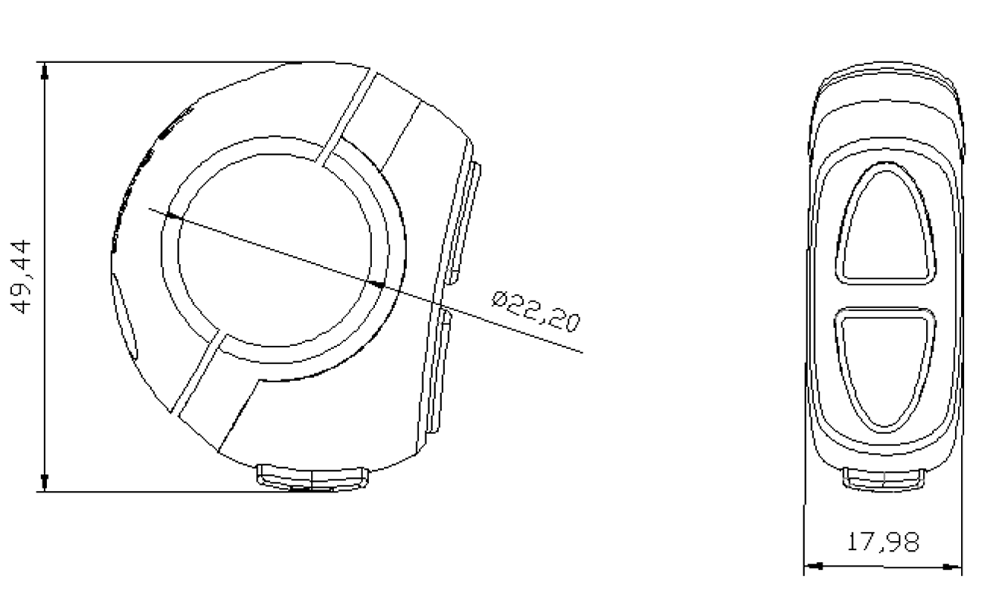

Display Dimensions (Unit: mm)
| Functions Summary |
Battery indication
Speed indication (Speed/ Trip/ODO)
PAS level
Headlight on and off
6km/h Walk assist function display
Error Codes
Various Parameters Setting. Such as: speed limit, wheel size, etc.
| Size | 650mmx126mmx31.8mm |
| Function | Battery indicator;Headlight;Walk;PAS level;Speed;Trip/ODO |
| Communication | UART; LIN CAN |
| Holder | Stem:28.6mm; Handlebar:22.2mm |
| Voltage | 24V/36V/48V |
| USB Charging | USB port: 5V/500mA |
| Certificate | EN15194:2017/CE/RoHS/IP66 |
