Middle set negative color IPS screen LCD display for ebike Bluetooth function USB charge UKS3 24V/36V/48V/60V/72V/UBE power supply

Color:
Black
Samples:
≥1pcs
price:
Depend on configuration
Availability:
Quantity:
Inquire Add to Basket

  • UKS3

  • Super-ecs

  • SUP-UKS3

SPEC

  • 24V/36V/48V/60V/72V/UBE power supply

  • Rated power 1W

  • USB charge DC 5V 500mA

  • Power off leak currant<1uA

  • Controller supply work currant 100mA, peak lower than 300mA

  • Operating temperature -20～70℃

  • Storage temperature -30～80℃

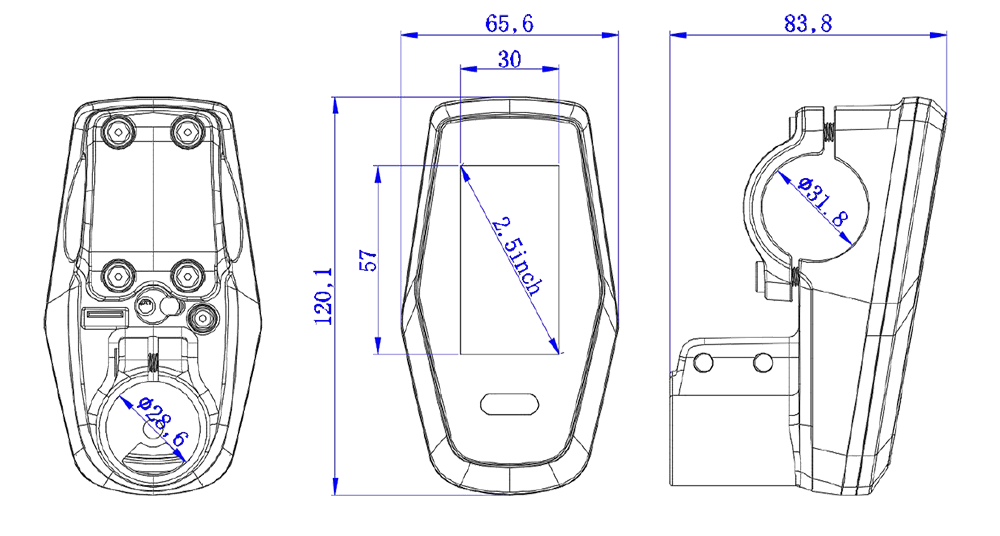

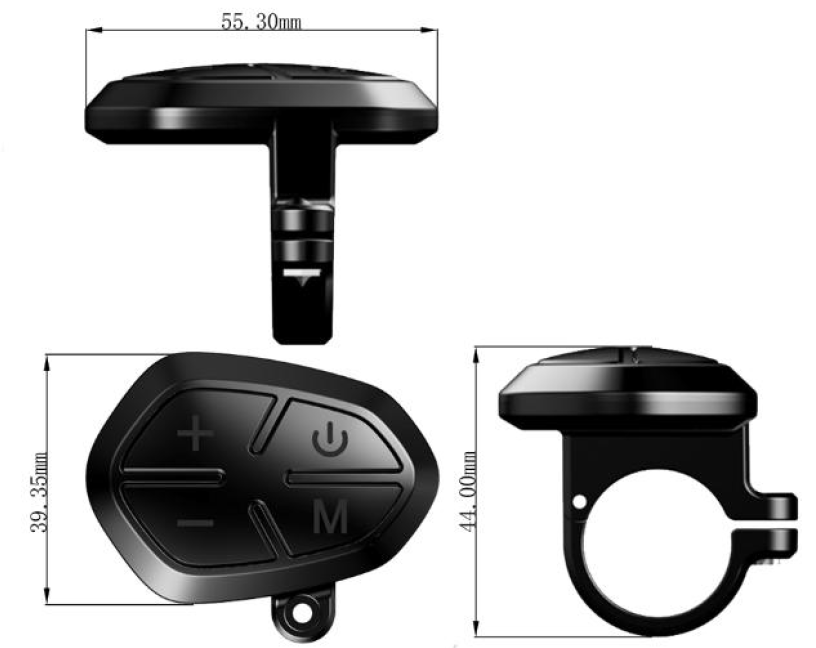

Parameter and Material

The product shell is made of aluminum alloy, and the LCD transparent window is high-definition

explosion-proof glass lens.

尺寸1

尺寸2

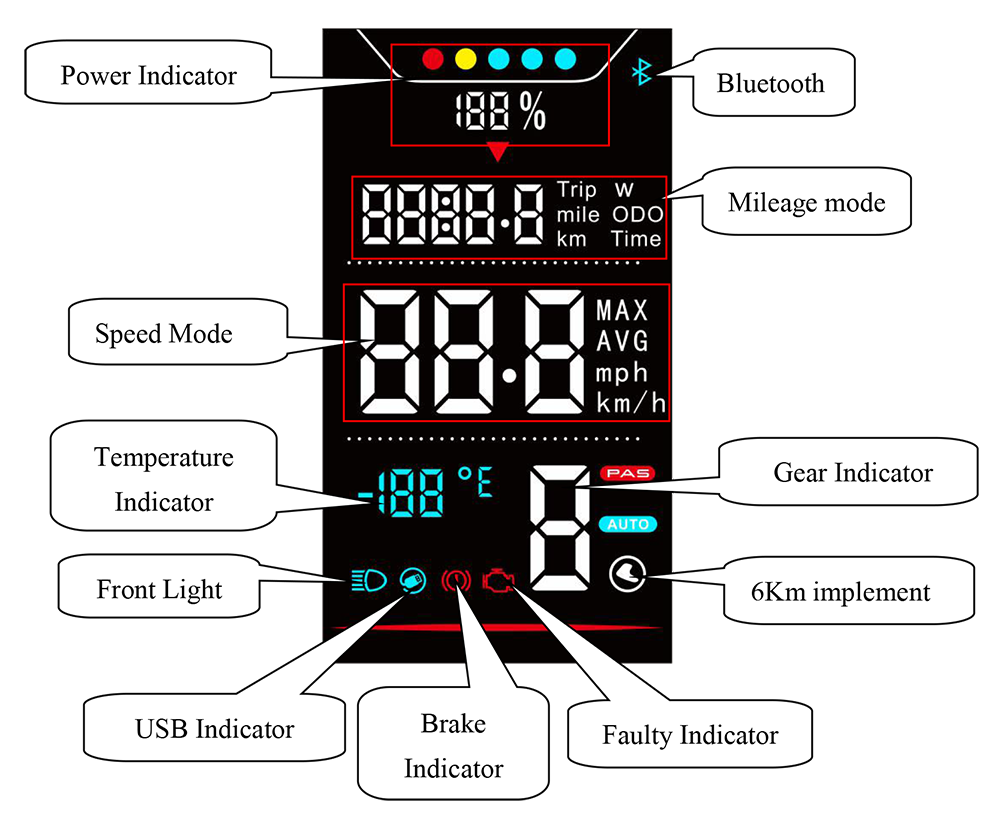

LCD Display Instructions

功能显示

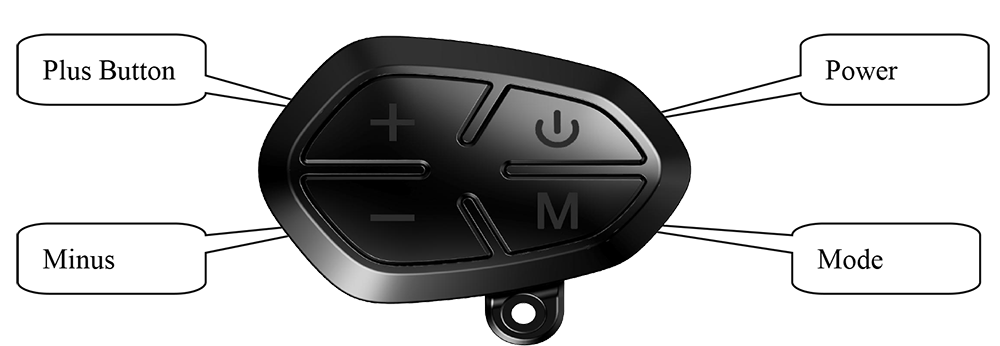

Button description

按键展示

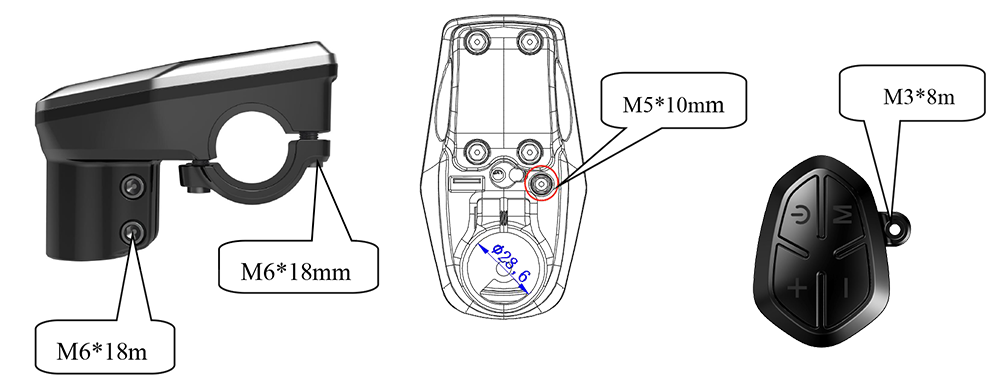

Installation Instruction

安装说明
