T154
Super-ecs
SUP-T154
| Description |

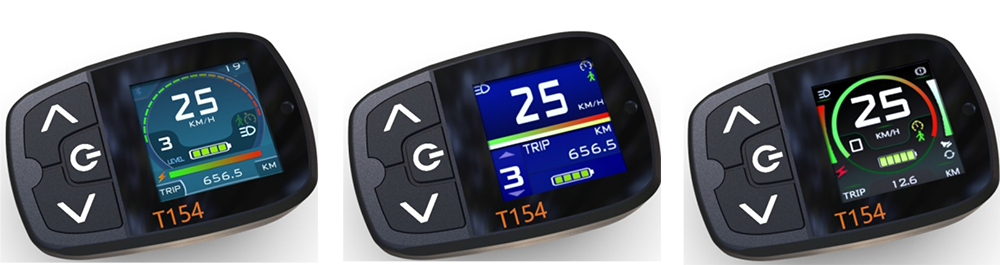

This is a centre control panel with a TFT colorful screen for ebike drive system ,transparent silicon rubber button with LED back-light, GUI interface ,digital communicating interface . 3 font color solution and 3 colorful skins are presented, a built-in light sensor and auto adjust the screen back light , and power on or off the light according to ambient intensity;
Those informations such as Speed , Battery Voltage ,Current, ODO,TRIP,Status of accessaries etc. can be show on the screen with different color ; Plenty setting menu items.
| Specification |
| Mode | T-154-1/2/3 |
| Screen | 1.54" TFT |
| Button | Sillicon( Red/Blue Backlight ) |
| Power | 15-60VDC/10mA |
| Communication | UART/RS232/CAN |
| Housing Material | ABS+PC |
| Weight | 58(g) |
| Customization | OK |

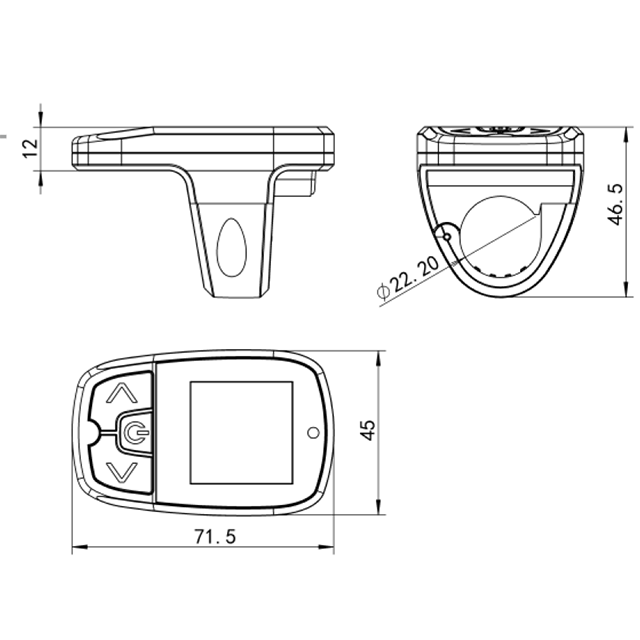

| product size |

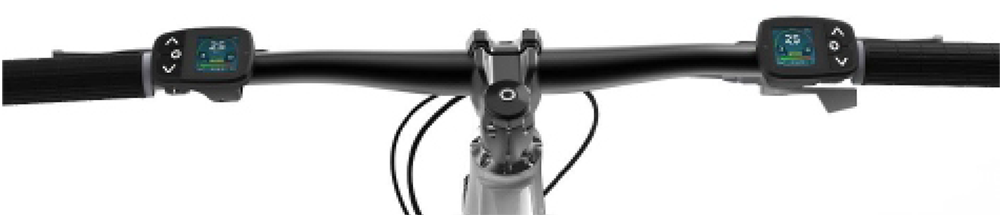

| Installation Instruction |
| Model |

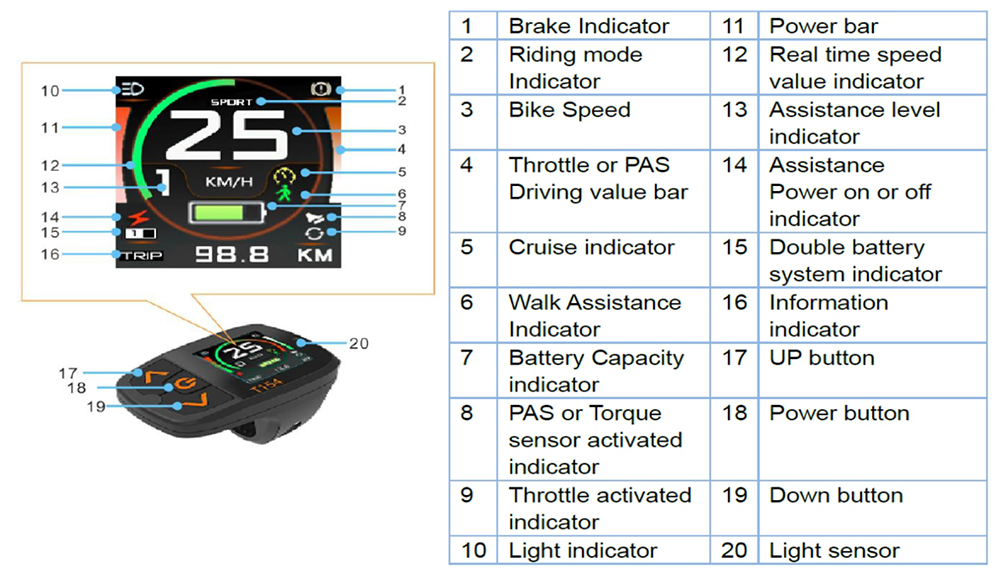

| Screen Interface |
| Description |
This is a centre control panel with a TFT colorful screen for ebike drive system ,transparent silicon rubber button with LED back-light, GUI interface ,digital communicating interface . 3 font color solution and 3 colorful skins are presented, a built-in light sensor and auto adjust the screen back light , and power on or off the light according to ambient intensity;
Those informations such as Speed , Battery Voltage ,Current, ODO,TRIP,Status of accessaries etc. can be show on the screen with different color ; Plenty setting menu items.
