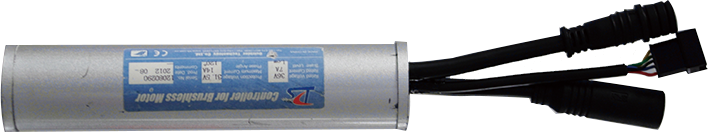

LD-LS04-F
Super-ecs
SUP-LD-LS04-F
All the controller specifications and functions are 100% guaranteed to pass the EN15194 test.
Specification |
Size | ¢28mm×185mm |
Rated Voltage | DC24V/DC36V |
Rated Power | 250W |
Low Voltage protection | DC21.5V(±0.5V)/DC31.5V(±0.5V) |
Current Limit | 12A(±0.5A)/15A(±0.5A) |
Standby Power Consumption | <2W |
Housing Materials | Aluminum |
Water Proof | IPX6 |
Motor Matching | Sensored Motor /Sensorless Motor |
Display Matching | LED Display/ LCD Display |
Functions & Features |
Super low noise | Reduce the motor torque ripple to minimum; achieve vehicle noise free, vibration-free and comfortable riding feeling. |
High efficiency | Field oriented control(FOC)sine-wave driving technology allows higher system efficiency, lower heat loss and longer riding mileage. |
Multiple Protections | Over-current protection,over-voltage/under-voltage protection, overheat protection, runaway protection, short-circuit protection, phase wire disconnect protection, blockage protection. |
Auto-sleep | When parking for more than 10 minutes without any operation, the system auto-matically power off to save battery power. |
Flexible configuration | Parameter settings can be modified through USB interface with the computer, or through display. Parameter include current limit value, low voltage protection value, sensor type, maximum speed, power ratio etc. |
All the controller specifications and functions are 100% guaranteed to pass the EN15194 test.
Specification |
Size | ¢28mm×185mm |
Rated Voltage | DC24V/DC36V |
Rated Power | 250W |
Low Voltage protection | DC21.5V(±0.5V)/DC31.5V(±0.5V) |
Current Limit | 12A(±0.5A)/15A(±0.5A) |
Standby Power Consumption | <2W |
Housing Materials | Aluminum |
Water Proof | IPX6 |
Motor Matching | Sensored Motor /Sensorless Motor |
Display Matching | LED Display/ LCD Display |
Functions & Features |
Super low noise | Reduce the motor torque ripple to minimum; achieve vehicle noise free, vibration-free and comfortable riding feeling. |
High efficiency | Field oriented control(FOC)sine-wave driving technology allows higher system efficiency, lower heat loss and longer riding mileage. |
Multiple Protections | Over-current protection,over-voltage/under-voltage protection, overheat protection, runaway protection, short-circuit protection, phase wire disconnect protection, blockage protection. |
Auto-sleep | When parking for more than 10 minutes without any operation, the system auto-matically power off to save battery power. |
Flexible configuration | Parameter settings can be modified through USB interface with the computer, or through display. Parameter include current limit value, low voltage protection value, sensor type, maximum speed, power ratio etc. |
