New products 2022 hot sale professional 36v 48v 13A 15A 20A 25A motor controller dc motor speed controller ebike FOC controller

Model:	CDD4 CDD6 CDD11 CDD11-FY CDD12 CDD14-QT CDD14-QL CDD14-HX CDD16
Samples:	≥1
price:	Depend on quantity
Availability:

Quantity:



Inquire Add to Basket

Brand:
Super-ecs

Product Description

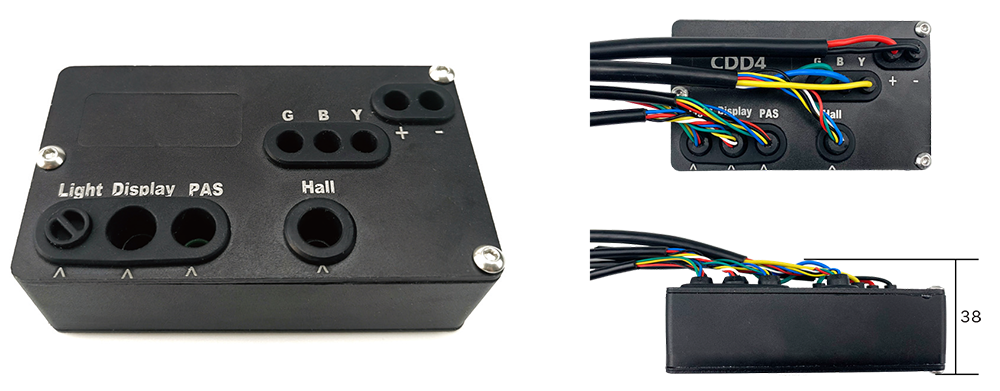

CDD4

详情1

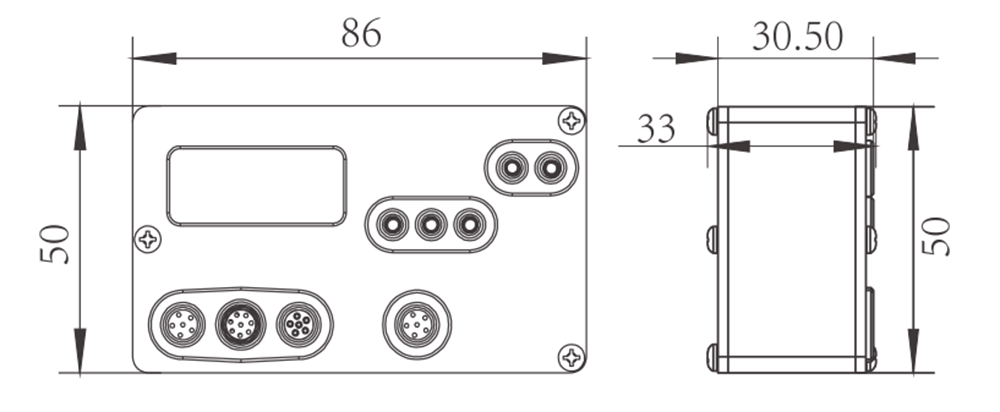

Product Size

详情2

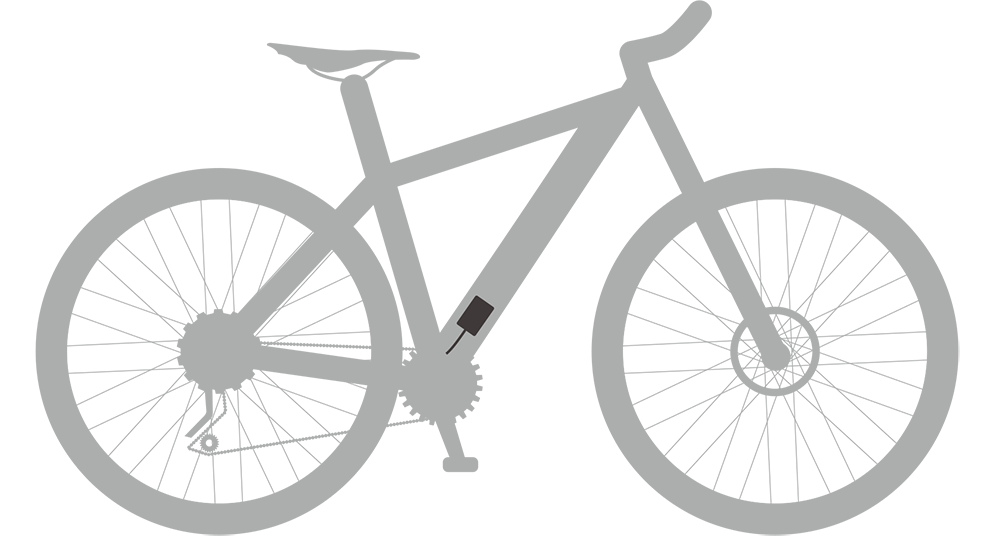

Installation location

详情3

Compatibility	36v/48v Universal
Communication Method	UART
Waterproof Level	IP54
Certification	CE/ROHS/EN15194
Limiting	15A
Minimum assembly size	38x51x87mm
Feature	1.Program update via meter port；2.Matching power assist sensor, force distance sensor FOC sine wave technology.
Feature

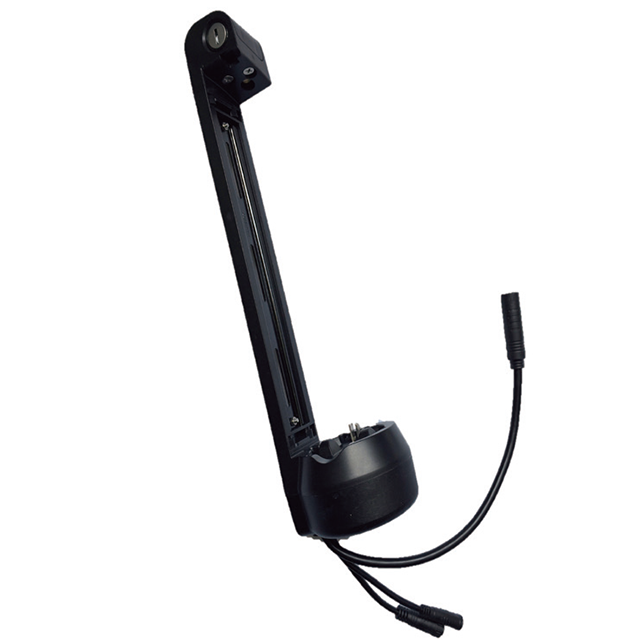

CDD6

主图2

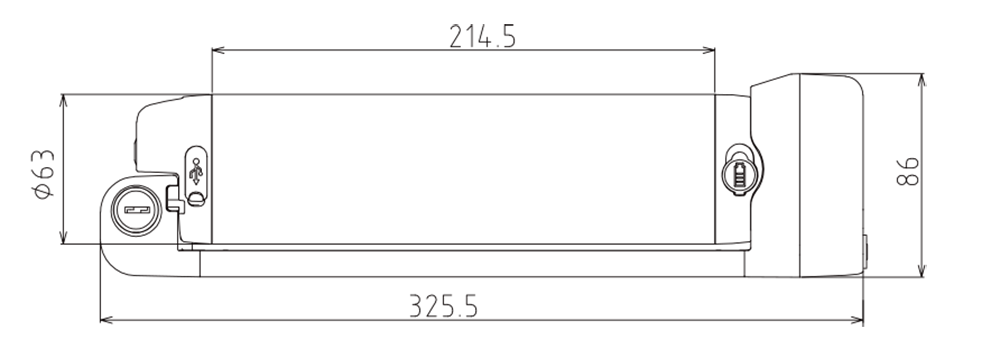

Product Size

详情4

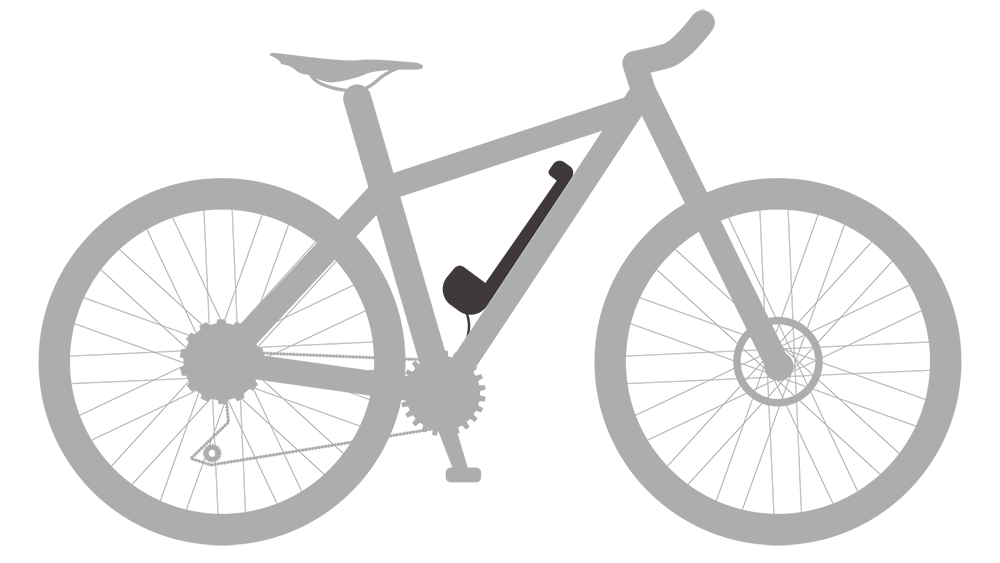

Installation location

详情5

Compatibility	36v/48v Universal
Communication Method	UART
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Limiting	15A
Feature	1.Program update via meter port；2.Matching power assist sensor, force distance sensor FOC sine wave technology.
Feature

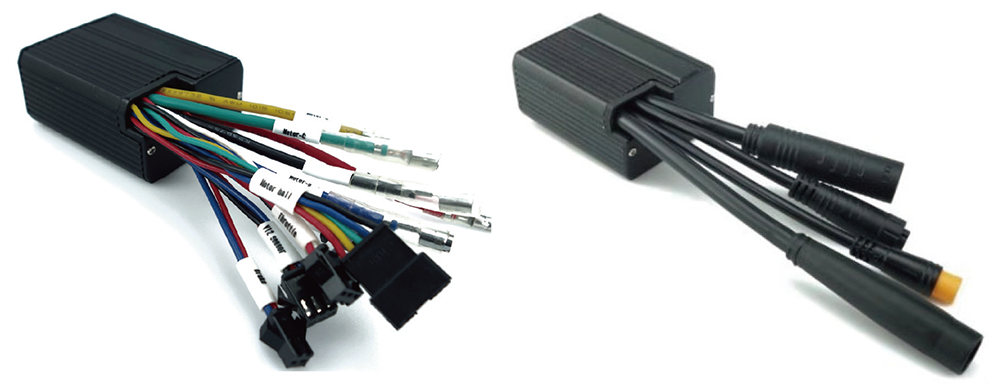

CDD11

详情6

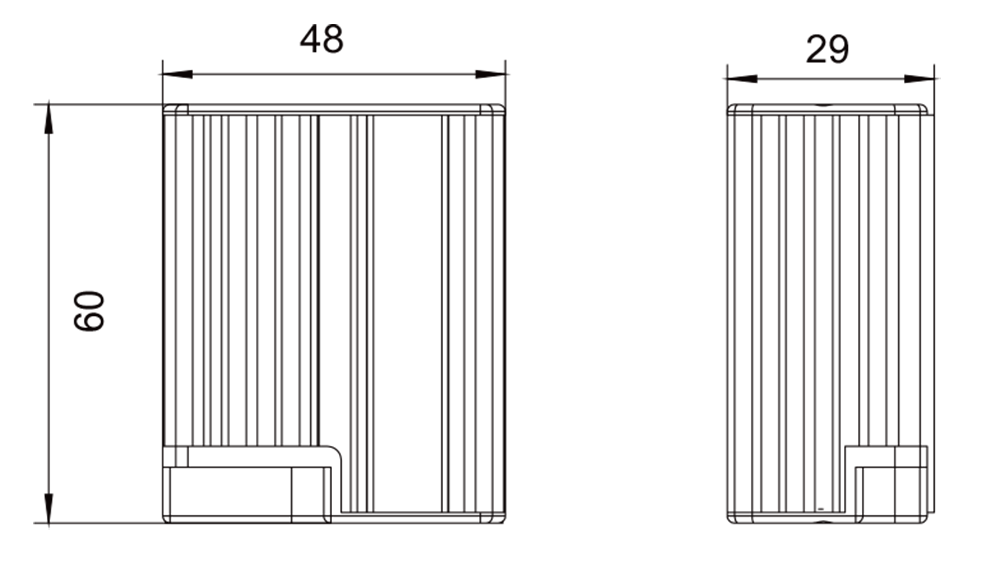

Product Size

详情7

Installation location

详情8

Compatibility	36v/48v Universal
Communication Method	UART
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Limiting	13A
Feature	1.Program update via meter port；2.Matching power assist sensor, force distance sensor FOC sine wave technology.

CDD11-FY

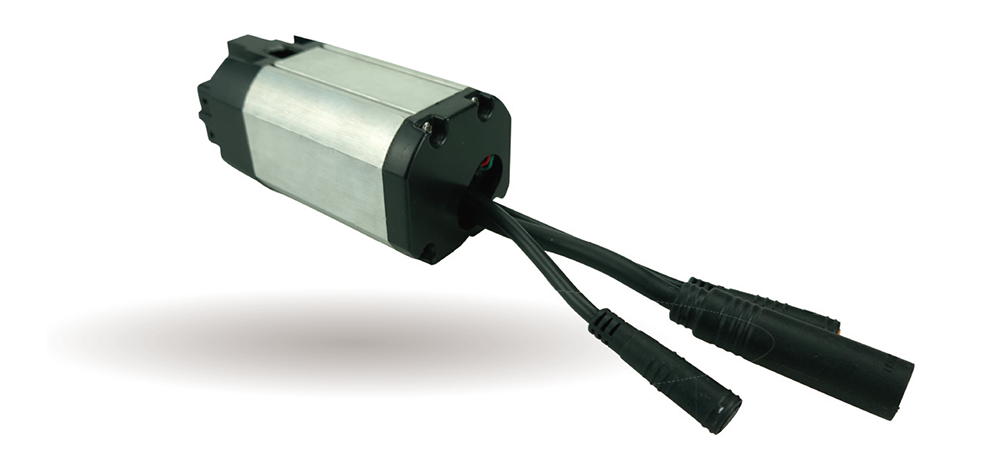

详情9

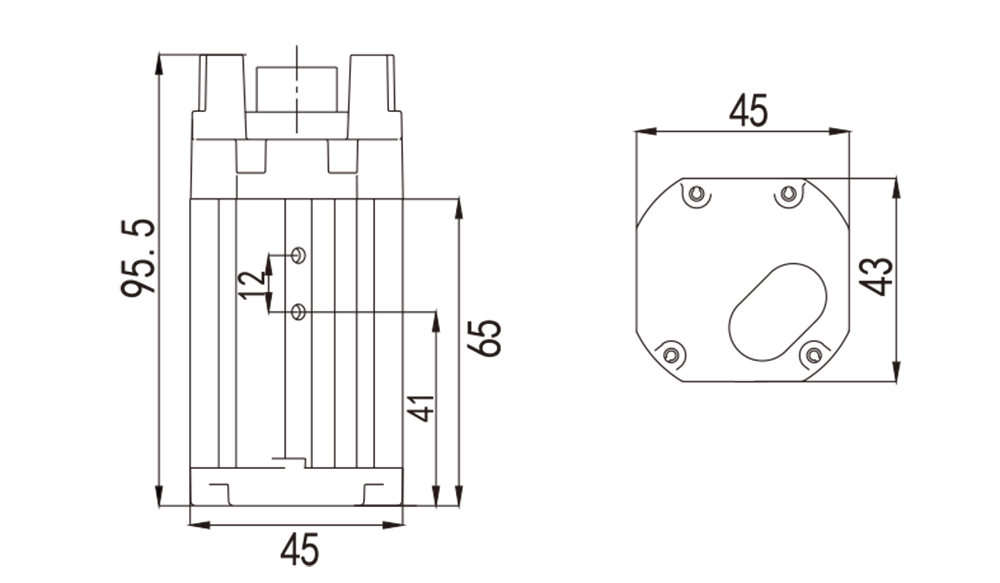

Product Size

详情10

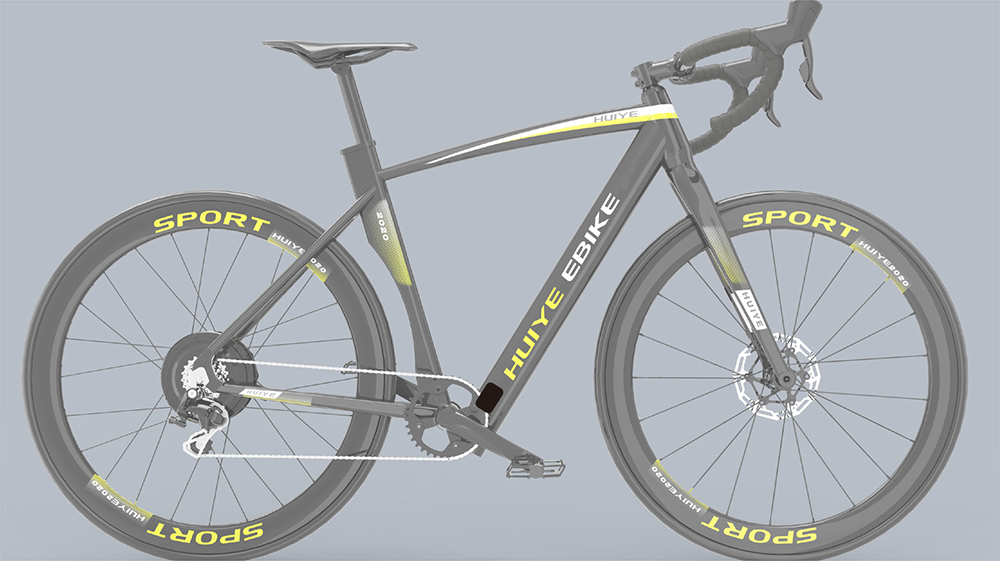

Installation location

详情11

Compatibility	36v/48v Universal
Communication Method	UART
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Limiting	13A
Feature	1.Program update via meter port；2.Matching power assist sensor, force distance sensor FOC sine wave technology;3.Built-in dual battery module.

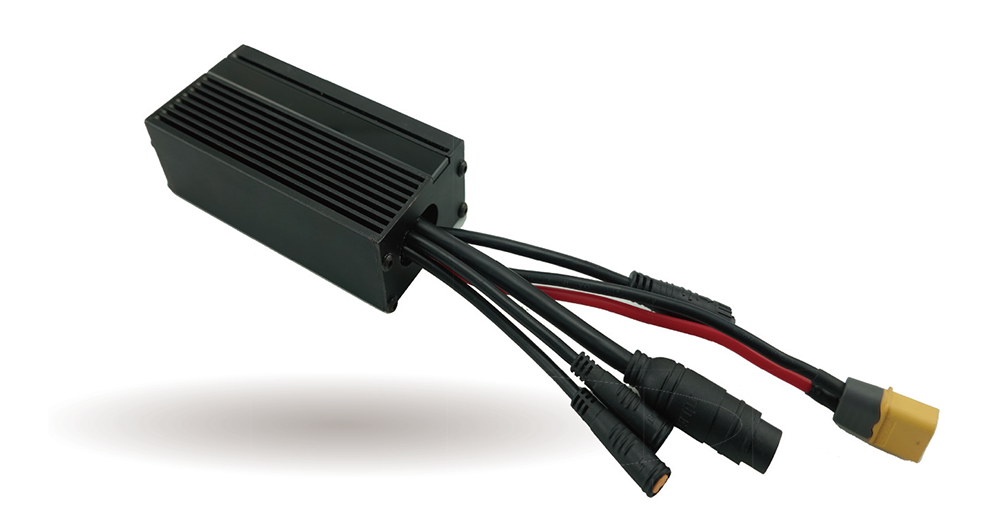

CDD12

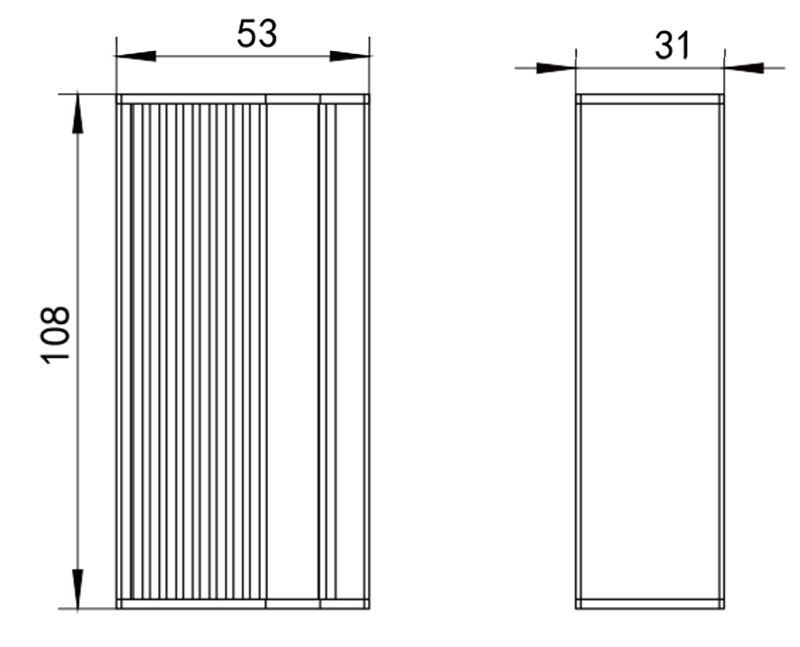

Product Size

详情13

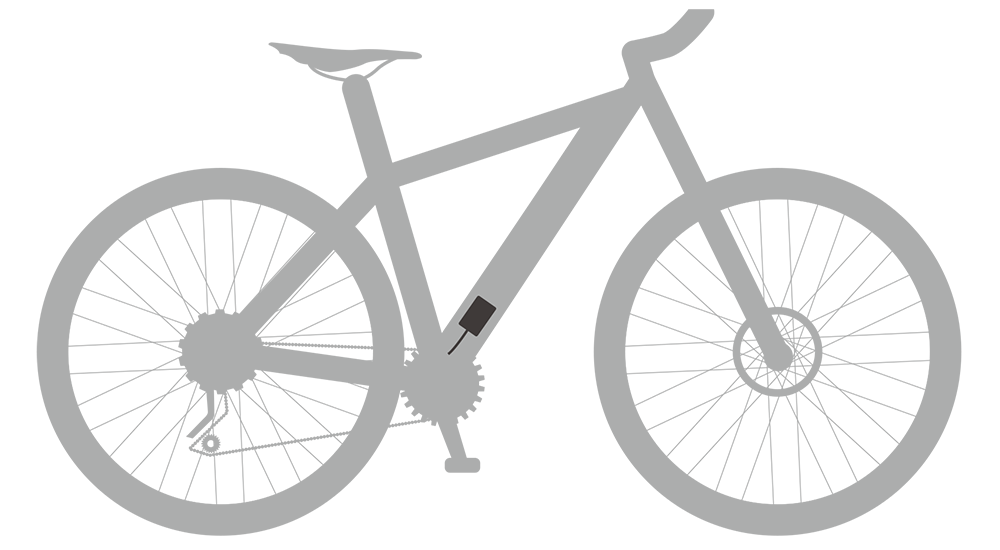

Installation location

详情14

Compatibility	36v/48v Universal
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS
Limiting	25A
Feature	1.Program update via meter port；2.Matching power assist sensor, force distance sensor FOC sine wave technology.

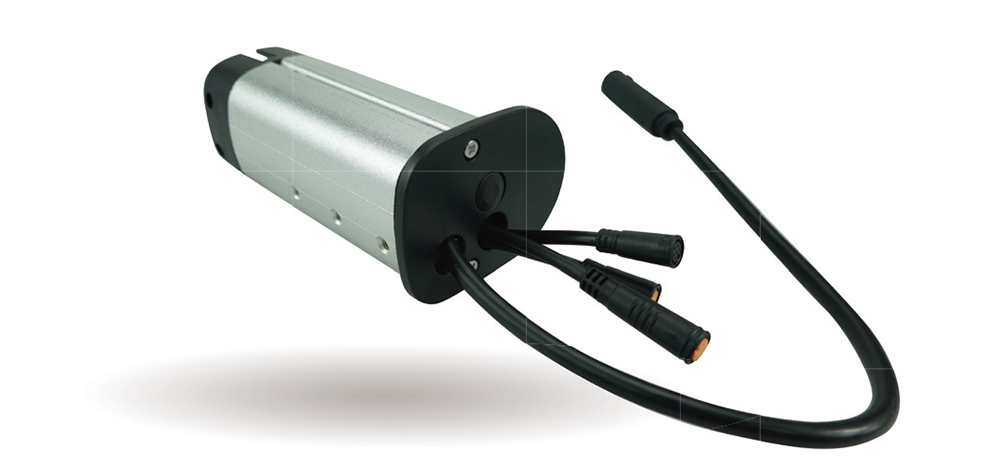

CDD14-QT

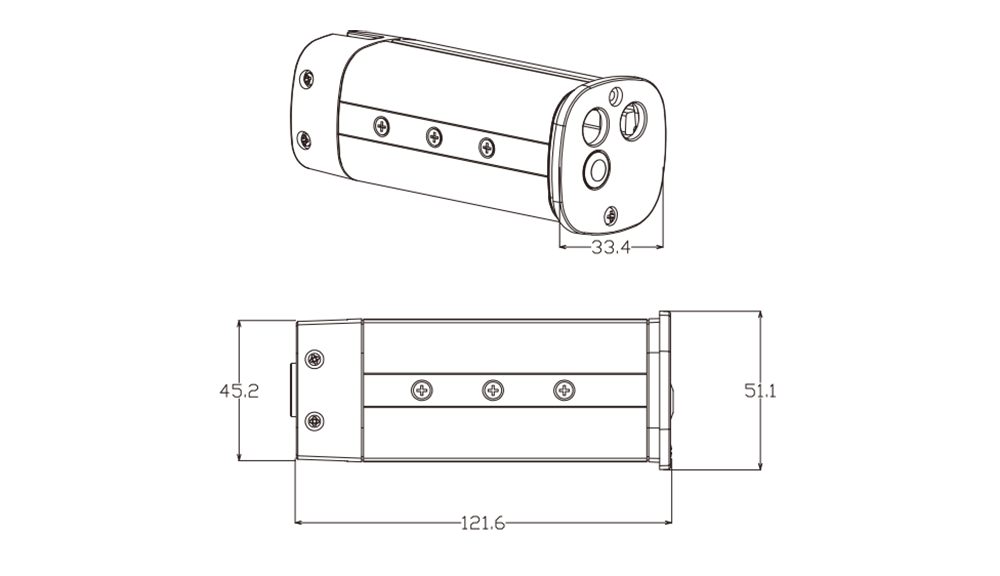

Product Size

详情16

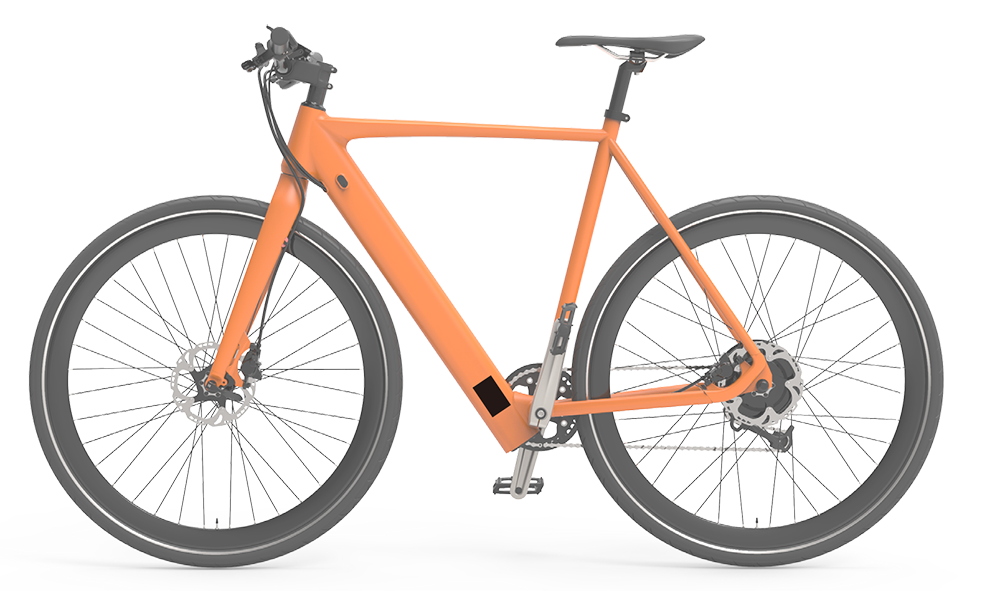

Installation location

详情17

Compatibility	36v/48v Universal
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS
Limiting	25A
Feature	1.Program update via meter port；2.Matching power assist sensor, force distance sensor FOC sine wave technology.

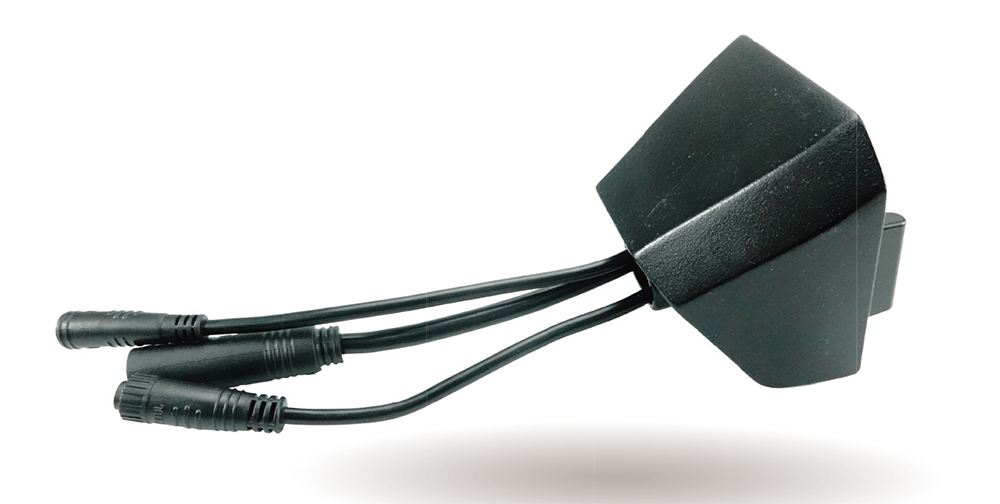

CDD14-QL

详情18

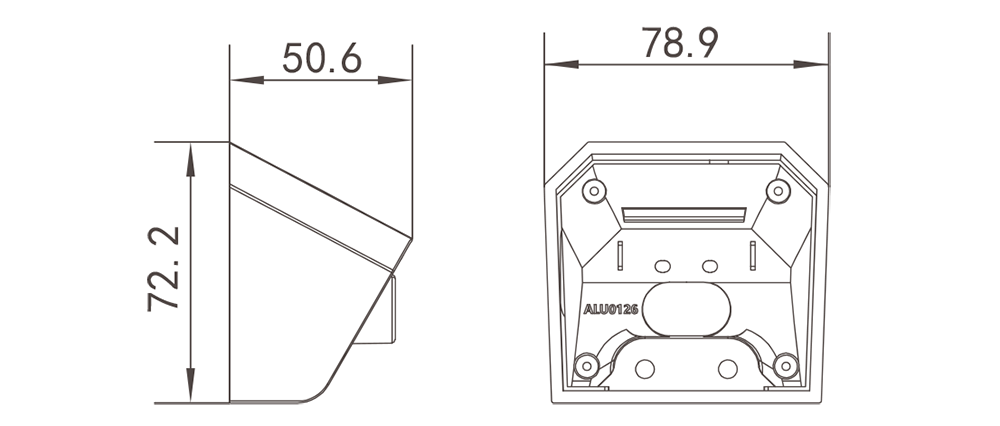

Product Size

详情19

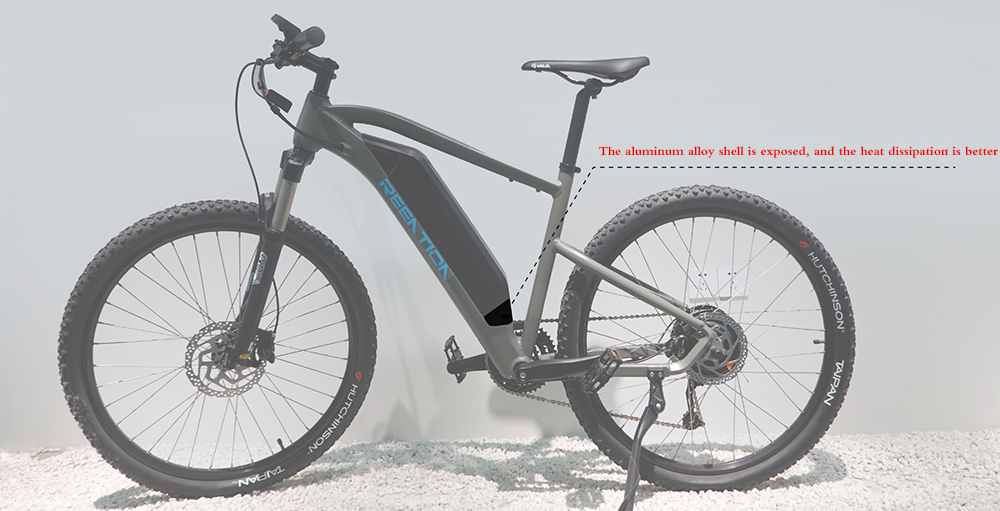

Installation location

详情20

Compatibility	36v/48v Universal
Communication Method	UART
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Limiting	15A
Feature	1.Program update via meter port；2.Matching power assist sensor, force distance sensor FOC sine wave technology.

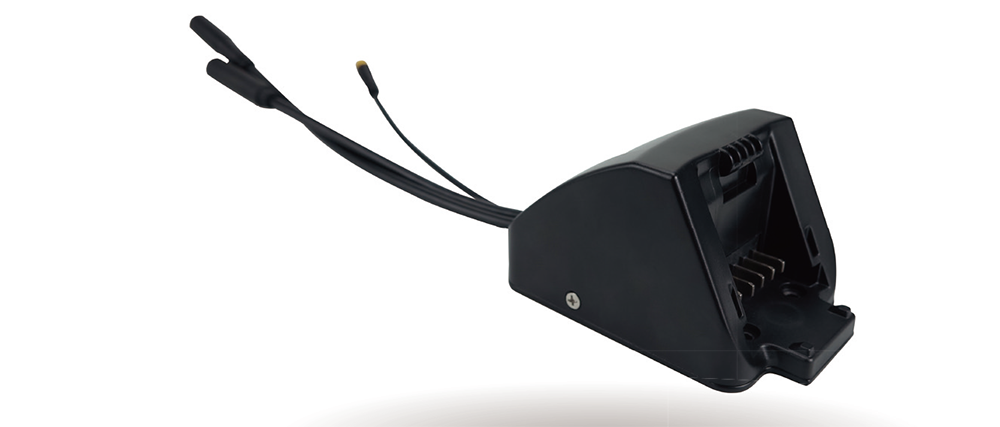

CDD14-HX

详情21

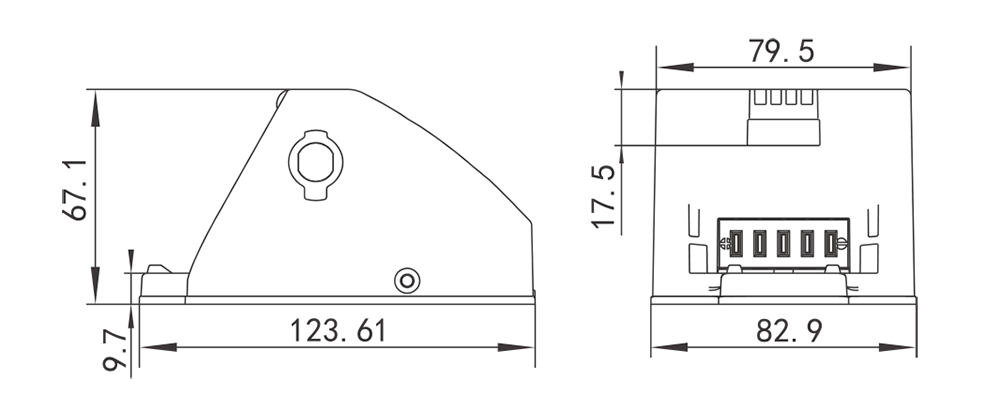

Product Size

详情22

Installation location

详情23

Compatibility	36v/48v Universal
Communication Method	UART
Waterproof Level	IP65
Certification	CE/ROHS/EN15194
Limiting	13A
Feature	1.Program update via meter port；2.Matching power assist sensor, force distance sensor FOC sine wave technology.

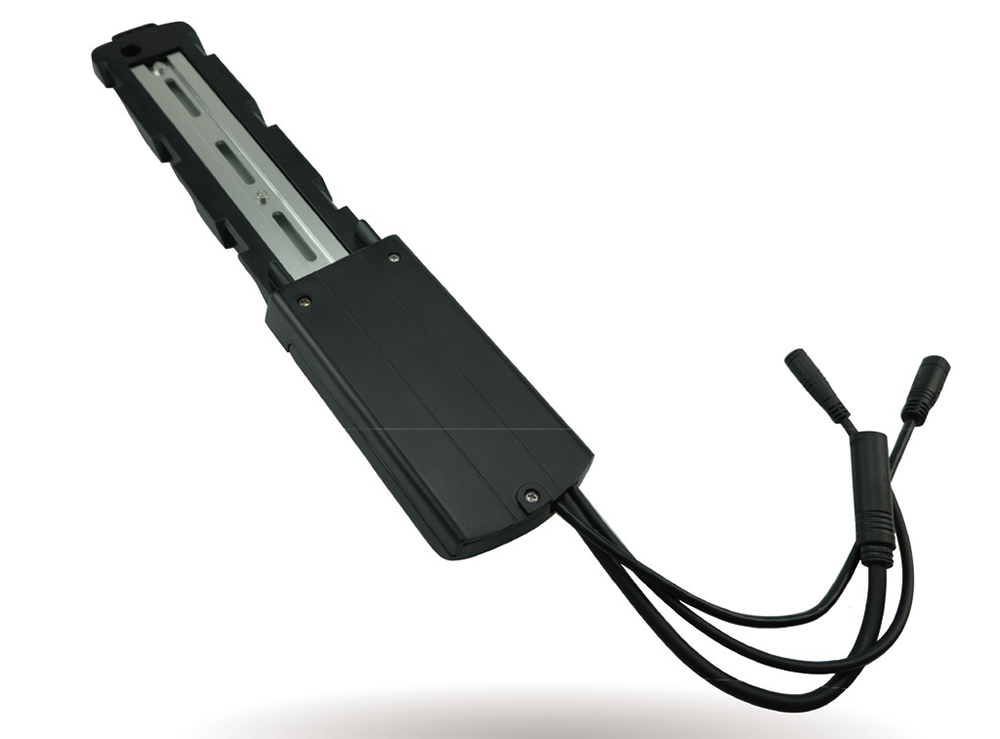

CDD16

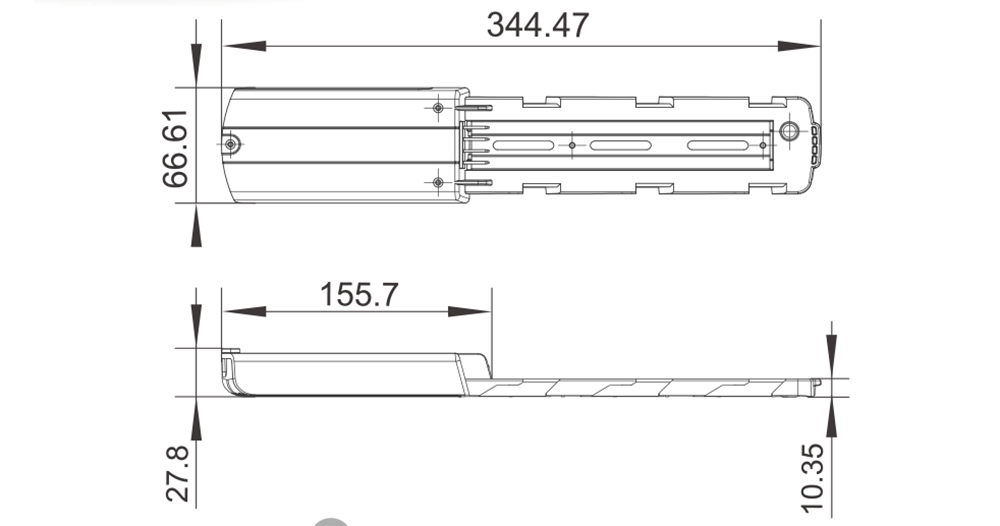

Product Size

详情25

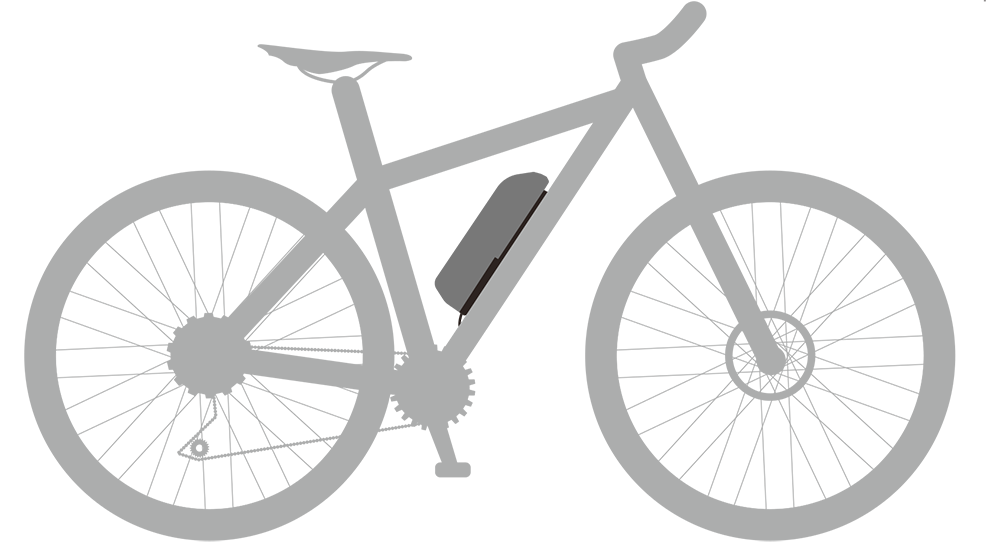

Installation location

详情26

Compatibility	36v/48v Universal
Communication Method	UART/CAN
Waterproof Level	IP65
Certification	CE/ROHS
Limiting	20A
Feature	1.Program update via meter port；2.Matching power assist sensor, force distance sensor FOC sine wave technology.
