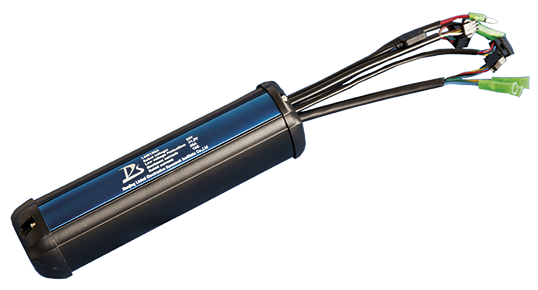

LD-LS33-F
Super-ecs
SUP-LD-LS33-F
All the controller specifications and functions are 100% guaranteed to pass the EN15194 test.
Specification |
Size | 200mm×45mm×55mm |
Rated Voltage | DC48V |
Rated Power | 500W |
Low Voltage protection | DC40.5(±0.5V) |
Current Limit | 25A(±0.5A) |
Standby Power Consumption | <2W |
Housing Materials | Aluminum |
Water Proof | IPX6 |
Motor Matching | Sensored Motor /Sensorless Motor |
Display Matching | LED Display/ LCD Display |
Functions & Features |
Super low noise | Reduce the motor torque ripple to minimum; achieve vehicle nois-e-free, vibration-free and comfortable riding feeling. |
High efficiency | Field oriented control(FOC)sine-wave driving technology allows hi-gher system efficiency, lower heat loss and longer riding mileage. |
Multiple Protections | Over-current protection,over-voltage/under-voltage protection, ov-er-heat protection, runaway protection, short-circuit protection, ph-ase wire disconnect protection, blockage protection. |
Auto-sleep | When parking for more than 10 minutes without any operation, th-e system auto-matically power off to save battery power. |
Flexible configuration | Parameter settings can be modified through USB interface with th-e computer, or through display. Parameter include current limit val-ue, low voltage protection value, sensor type, maximum speed, po-wer ratio etc. |
All the controller specifications and functions are 100% guaranteed to pass the EN15194 test.
Specification |
Size | 200mm×45mm×55mm |
Rated Voltage | DC48V |
Rated Power | 500W |
Low Voltage protection | DC40.5(±0.5V) |
Current Limit | 25A(±0.5A) |
Standby Power Consumption | <2W |
Housing Materials | Aluminum |
Water Proof | IPX6 |
Motor Matching | Sensored Motor /Sensorless Motor |
Display Matching | LED Display/ LCD Display |
Functions & Features |
Super low noise | Reduce the motor torque ripple to minimum; achieve vehicle nois-e-free, vibration-free and comfortable riding feeling. |
High efficiency | Field oriented control(FOC)sine-wave driving technology allows hi-gher system efficiency, lower heat loss and longer riding mileage. |
Multiple Protections | Over-current protection,over-voltage/under-voltage protection, ov-er-heat protection, runaway protection, short-circuit protection, ph-ase wire disconnect protection, blockage protection. |
Auto-sleep | When parking for more than 10 minutes without any operation, th-e system auto-matically power off to save battery power. |
Flexible configuration | Parameter settings can be modified through USB interface with th-e computer, or through display. Parameter include current limit val-ue, low voltage protection value, sensor type, maximum speed, po-wer ratio etc. |
