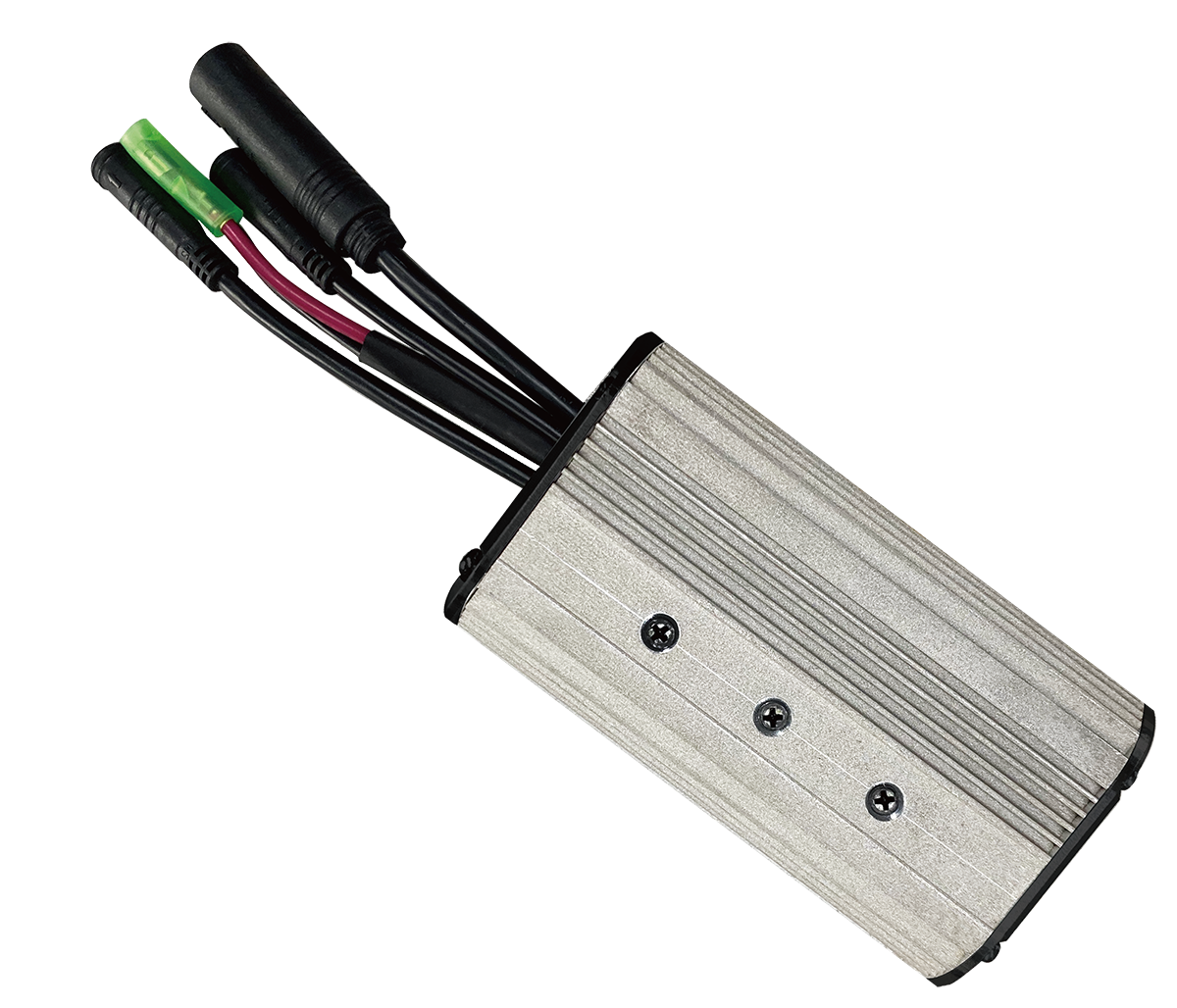

48v 750w ebike FOC controller

Color:
Samples:
price:
Availability:
Quantity:
  • LD-LS73

  • Super-ecs

  • SUP-LD-LS73

  • All the controller specifications and functions are 100% guaranteed to pass the EN15194 test.

Specification

Size 115mm×63mm×33mm
Rated Voltage DC48V
Rated Power 750W
Low Voltage protection DC42V
Current Limit 30A(±0.5A)
Standby Power Consumption <2W
Housing Materials Aluminum
Water Proof IPX6
Motor Matching Sensored Motor /Sensorless Motor
Display Matching LED Display/ LCD Display
Functions  &Features:
Super low  noise Reduce the motor torque ripple to minimum; achieve vehicle noise free, vibration-free and comfortable riding feeling.
High efficiency Field oriented control(FOC)sine-wave driving technology allows higher system efficiency, lower heat loss and longer riding mileage.
Multiple  Protections Over-current protection,over-voltage/under-voltage protection, overheat  protection, runaway protection, short-circuit protection, phase wire disconnect protection, blockage protection.
Auto-sleep When parking for more than 10 minutes without any operation, the system auto-matically power off to save battery power.
Flexible  configuration Parameter settings can be modified through USB interface with the computer, or through display. Parameter include current limit value, low voltage protection value, sensor type, maximum speed, power ratio etc.
